US2MF MDD

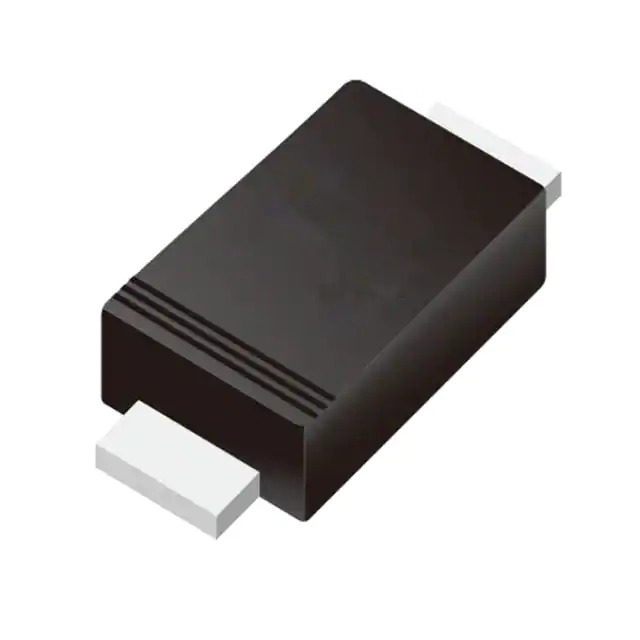

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr MDD
Series SMAF
Package Tape & Reel
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 1000 V
Current - Average Rectified (Io) 2A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 5 µA @ 1000 V
Capacitance @ Vr, F 20pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case DO-221AC, SMA Flat Leads
Supplier Device Package SMAF
Operating Temperature - Junction -55°C ~ 150°C
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1366711-US2MF
Ultra Librarian 3D Model Ultra Librarian US2MF CAD Model

Description

The 1366711-US2MF is a standard diode in a DO-221AC, SMA Flat Leads package.

  • Package / Case: DO-221AC, SMA Flat Leads
  • Application: Rectification
  • Maximum DC Reverse Voltage: 1000V
  • Average Rectified Current: 2A
  • Recovery Time: Less than 500ns
  • Reverse Leakage Current @ Vr: 5µA @ 1000V
  • Capacitance @ Vr, F: 20pF @ 4V, 1MHz
  • Mounting Type: Surface Mountable
  • Temperature Range: -55°C to 150°C
  • Product Status: Active
  • Series: SMAF
