Products specifications

Category Discrete Semiconductor Products - Diodes - Rectifiers - Diode Arrays
Mfr Microchip Technology
Package Tube
Product Status Active
Diode Configuration 2 Independent
Technology Standard
Voltage - DC Reverse (Vr) (Max) 1000 V
Current - Average Rectified (Io) (per Diode) 28A
Voltage - Forward (Vf) (Max) @ If 2.3 V @ 30 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 290 ns
Current - Reverse Leakage @ Vr 250 µA @ 1000 V
Operating Temperature - Junction -55°C ~ 175°C
Mounting Type Chassis Mount

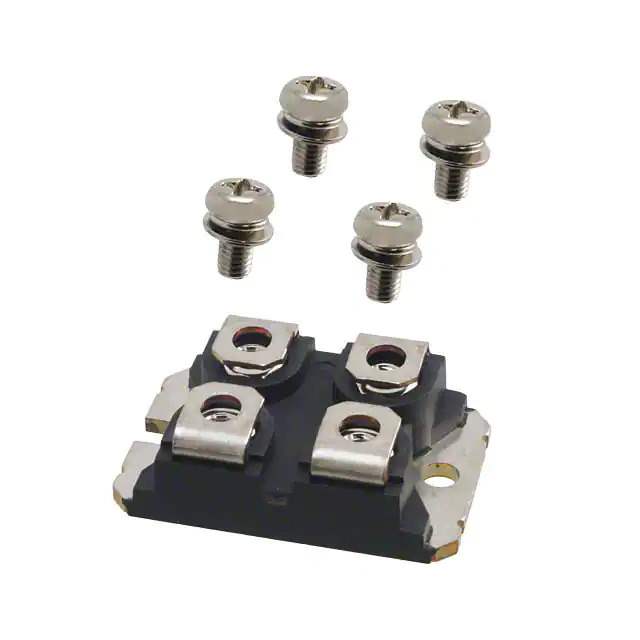

Package / Case SOT-227-4, miniBLOC
Supplier Device Package ISOTOP®
Base Product Number APT2X30
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 564012-APT2X30D100J
Ultra Librarian 3D Model Ultra Librarian APT2X30D100J CAD Model

Description

Introducing the APT2X30D100J Power MOSFET by Microchip Technology

Microchip Technology, a leading provider of microcontroller, mixed-signal, analog, and Flash-IP solutions, presents the APT2X30D100J, a powerful and reliable Power MOSFET designed for a broad range of applications. This semiconductor device is engineered to cater to the demanding needs of high-efficiency power conversion systems.

Key Features and Benefits

  • High Voltage Capability: The APT2X30D100J is a robust component with a 1000V drain-to-source voltage (V<sub>DS), making it suitable for high voltage applications.
  • Low On-Resistance: With an on-resistance (R<sub>DS(on)) of just 0.30 Ohm, this MOSFET ensures minimal conduction losses, leading to higher efficiency in power conversion.
  • Fast Switching Performance: Its fast switching capability reduces switching losses, which is crucial for high-frequency power supplies and converters.
  • High Current Handling: The device can handle continuous drain currents up to 30A, accommodating substantial power requirements.
  • TO-247 Package: Encased in a TO-247 package, the APT2X30D100J offers excellent thermal performance and is easy to mount on a variety of PCBs.

Applications

The APT2X30D100J is versatile and can be used in a range of applications, including:

  • Switch Mode Power Supplies (SMPS)
  • Uninterruptible Power Supplies (UPS)
  • Power Factor Correction (PFC) circuits
  • Motor Drives
  • High-Efficiency DC-DC Converters
  • Welding and Induction Heating

Reliability and Quality

Microchip Technology is committed to delivering products that meet the highest standards of quality and reliability. The APT2X30D100J is no exception, offering long-term performance and stability. It is designed to withstand the rigors of industrial environments and provide consistent operation over its lifespan.

With the APT2X30D100J, designers and engineers can expect a product that not only enhances the performance of their power systems but also offers the reliability that Microchip Technology is known for. Whether for new designs or upgrading existing systems, the APT2X30D100J is an excellent choice for efficient and reliable power management.

For detailed specifications, application notes, and additional resources, please visit the Microchip Technology website or contact their support team for personalized assistance.
