Products specifications

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr Microchip Technology
Series megaAVR® 0, Functional Safety (FuSa)
Package Tape & Reel
Core Processor AVR
Core Size 8-Bit
Speed 20MHz
Connectivity I2C, SPI, UART/USART
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Number of I/O 41
Program Memory Size 16KB (16K x 8)
Program Memory Type FLASH
EEPROM Size 256 x 8
RAM Size 2K x 8
Supply Voltage - Operating 1.8V ~ 5.5V
Data Converters A/D 16x10b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)

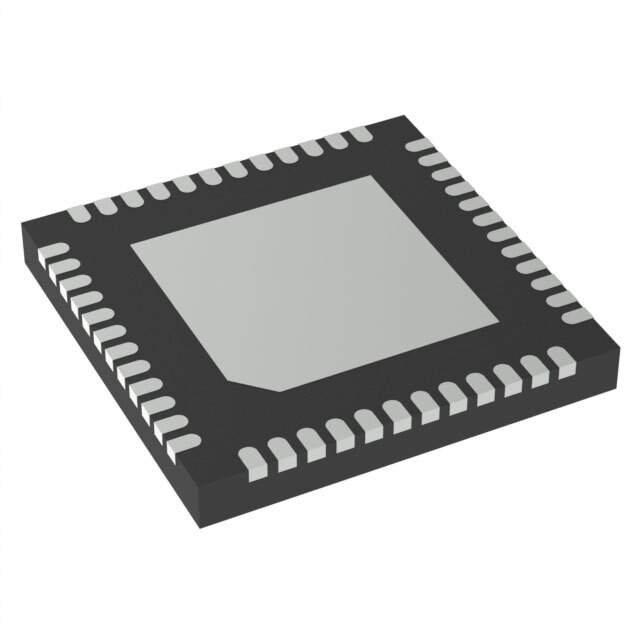

Package / Case 48-UFQFN Exposed Pad
Supplier Device Package 48-UQFN (6x6)
Base Product Number ATMEGA1609
ECCN EAR99
HTSUS 8542.31.0001
Other Names 150-ATMEGA1609-MURCT,150-ATMEGA1609-MURDKR,150-ATMEGA1609-MURTR
Standard Package 3,300
Win Source Part Number 1316316-ATMEGA1609-MUR
Ultra Librarian 3D Model Ultra Librarian ATMEGA1609-MUR CAD Model

Description

Product Overview: ATMEGA1609-MUR from Microchip Technology

The ATMEGA1609-MUR is a powerful microcontroller unit (MCU) from Microchip Technology, renowned for its high performance and versatility in a wide range of applications. This MCU is part of the megaAVR 0-series, which is designed to deliver the perfect balance between power consumption and processing capability, making it an ideal choice for both industrial and consumer applications.

At the core of the ATMEGA1609-MUR lies an advanced RISC architecture that enables the MCU to execute powerful instructions in a single clock cycle. This feature significantly enhances the overall performance, allowing for efficient task management and swift data processing. With its operating voltage ranging from 1.8V to 5.5V, this MCU provides the flexibility needed to support various power supply configurations and ensures reliable operation even in fluctuating power environments.

The ATMEGA1609-MUR comes with 16KB of in-system self-programmable flash memory, providing ample space for complex program codes and data storage. Additionally, it is equipped with 2KB SRAM and 256B EEPROM, which further extends its capabilities in terms of data handling and retention. The integration of a 20MHz internal oscillator ensures that the MCU can maintain a stable clock source without the need for external components, thereby reducing the overall system cost and complexity.

Connectivity is another strong suit of the ATMEGA1609-MUR, featuring a rich set of interface options including SPI, I2C, and USART, which are essential for modern embedded systems requiring communication with peripherals, sensors, and other MCUs. The presence of 22 programmable I/O lines allows for extensive interface with external devices, making it extremely adaptable to different project requirements.

Safety and reliability are paramount for Microchip Technology, and the ATMEGA1609-MUR incorporates multiple safety features like power-on reset, brown-out detection, and a watchdog timer to ensure stable operation under adverse conditions. It also supports full system self-programmability for in-application code upgrades, which is crucial for long-term maintenance and updates.

In summary, the ATMEGA1609-MUR is a robust and feature-rich MCU that offers a perfect blend of power efficiency, processing power, and connectivity options, making it an excellent choice for designers and engineers looking to develop sophisticated and reliable electronic systems.
