Products specifications

Category Integrated Circuits (ICs) - Embedded - Microcontrollers
Mfr Microchip Technology
Series AVR® ATmega
Package Tray
Product Status Obsolete
Programmable Not Verified
Core Processor AVR
Core Size 8-Bit
Speed 16MHz
Connectivity SPI, UART/USART, USI
Peripherals Brown-out Detect/Reset, LCD, POR, PWM, WDT
Number of I/O 54
Program Memory Size 16KB (8K x 16)
Program Memory Type FLASH
EEPROM Size 512 x 8
RAM Size 1K x 8
Voltage - Supply (Vcc/Vdd) 2.7V ~ 5.5V
Data Converters A/D 8x10b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 64-TQFP
Supplier Device Package 64-TQFP (14x14)
Base Product Number ATMEGA169
Standard Package 49 pcs
ECCN EAR99
HTSUS 8542.31.0001
Win Source Part Number 566666-ATMEGA169-16AU

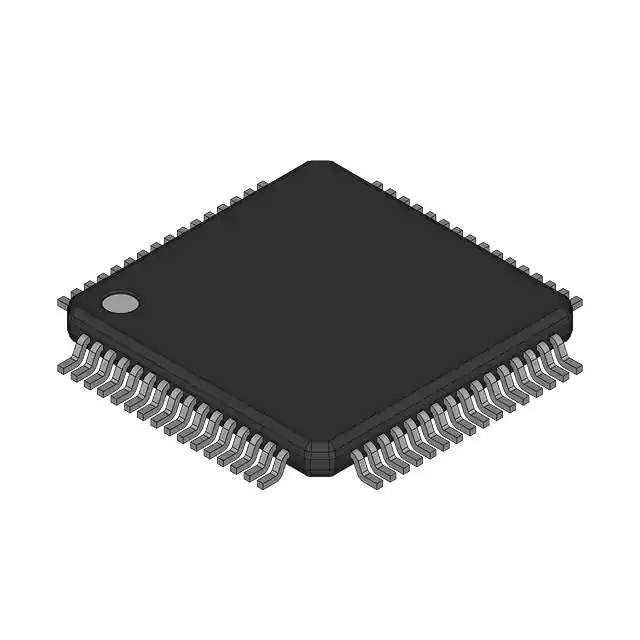

Ultra Librarian 3D Model Ultra Librarian ATMEGA169-16AU CAD Model

Description

The ATMEGA169-16AU is a powerful microcontroller unit (MCU) produced by Microchip Technology, designed for embedded applications requiring a compact, low-power, and high-performance solution. This MCU is part of the popular AVR® family and features a RISC-based architecture that delivers exceptional speed and efficiency.

Key Features:

  • Advanced RISC Architecture: With 131 powerful instructions, most of which are executed in a single clock cycle, the ATMEGA169-16AU provides a balanced blend of performance and power efficiency.
  • High Endurance Non-volatile Memory Segments: The device comes equipped with 16KB of in-system self-programmable flash, 512 Bytes EEPROM, and 1KB SRAM. This ensures ample space for complex applications and data storage.
  • Peripheral Features: It includes a range of peripherals such as a 10-bit ADC with multiple channels, PWM channels, and multiple timers, which facilitate complex tasks and control applications.
  • JTAG (IEEE std. 1149.1 compliant) Interface: This feature allows for extensive debugging and programming capabilities.
  • Up to 16 MIPS Throughput at 16 MHz: The ATMEGA169-16AU operates at a high clock speed, allowing for quick processing and response times.
  • Operating Voltages: It operates between 2.7-5.5 volts, making it suitable for various applications and ensuring compatibility with most electronic components.
  • Industrial and Automotive Temperature Ranges: The device is designed to withstand and operate within a wide range of temperatures, ensuring reliability in various environments.

Applications:

The ATMEGA169-16AU is highly versatile and can be used in a variety of applications, including but not limited to:

  • Automotive systems
  • Industrial control systems
  • Battery management
  • Smart home devices
  • Medical devices

With its robust feature set and Microchip's reputation for quality, the ATMEGA169-16AU is an excellent choice for designers and engineers looking to develop sophisticated and reliable embedded systems.
