Products specifications

Category Crystals, Oscillators, Resonators - Pin Configurable/Selectable Oscillators
Mfr Microchip Technology
Series DSC60XX
Package Bag
Product Status Obsolete
Base Resonator MEMS
Type XO (Standard)
Frequency - Output 1 24MHz, 48MHz
Output CMOS
Voltage - Supply 1.71V ~ 3.63V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 1.3mA (Typ)
Size / Dimension 0.063" L x 0.047" W (1.60mm x 1.20mm)
Height 0.035" (0.89mm)
Package / Case 4-VFLGA
Standard Package 100
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1343215-DSC6021HI2A-00A2
Ultra Librarian 3D Model Ultra Librarian DSC6021HI2A-00A2 CAD Model

Description

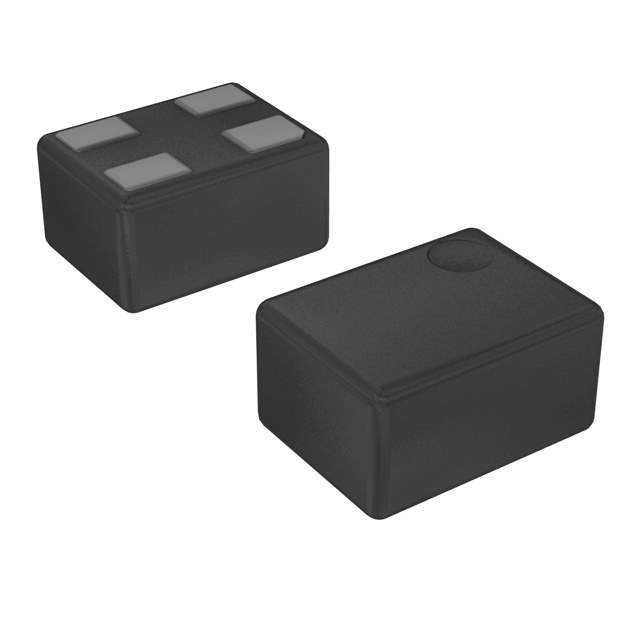

Microchip Technology DSC6021HI2A-00A2

The DSC6021HI2A-00A2 is a high-performance, low-power MEMS oscillator from Microchip Technology, a leading provider of smart, connected, and secure embedded control solutions. This oscillator is designed for a wide range of applications, including industrial, automotive, consumer electronics, and the Internet of Things (IoT).

Key Features

  • Frequency Range: The device offers a stable frequency range that is ideal for precise timing requirements.
  • Low Power Consumption: It is engineered to consume minimal power, making it suitable for battery-powered and portable devices.
  • Compact Size: The DSC6021HI2A-00A2 comes in a compact package, allowing it to fit into space-constrained applications without compromising performance.
  • Stability: It provides excellent frequency stability over a wide temperature range, ensuring reliable operation under varying environmental conditions.
  • Output Type: The oscillator supports CMOS output, which is compatible with a broad array of digital circuits.
  • Supply Voltage: It operates on a supply voltage that is common in many electronic systems, facilitating easy integration.
  • RoHS Compliant: The product adheres to the Restriction of Hazardous Substances (RoHS) directive, making it environmentally friendly and suitable for use in markets with strict RoHS requirements.

Applications

The DSC6021HI2A-00A2 is versatile and can be used in various applications such as:

  • Industrial automation and control systems
  • Automotive electronics
  • Portable consumer electronic devices
  • Wireless communication systems
  • IoT devices requiring precise timekeeping

Quality and Reliability

Microchip Technology is known for its commitment to quality and reliability, and the DSC6021HI2A-00A2 is no exception. It undergoes rigorous testing and quality assurance processes to ensure that it meets the high standards expected by customers in demanding applications.

For designers and engineers looking for a reliable, high-performance timing solution, the DSC6021HI2A-00A2 from Microchip Technology is an excellent choice that combines efficiency, precision, and compactness.
