Products specifications

Category Crystals, Oscillators, Resonators - Pin Configurable/Selectable Oscillators
Mfr Microchip Technology
Series DSC60XX
Package Tube
Product Status Obsolete
Base Resonator MEMS
Type XO (Standard)
Frequency - Output 1 74.1758MHz, 74.25MHz
Output CMOS
Voltage - Supply 1.71V ~ 3.63V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 1.3mA (Typ)
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height 0.035" (0.89mm)

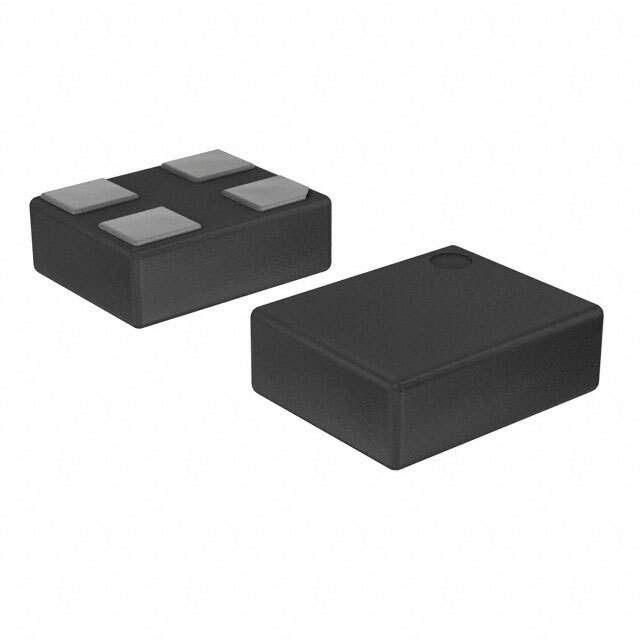

Package / Case 4-VLGA
Standard Package 140
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1343274-DSC6023JI2A-00A7
Ultra Librarian 3D Model Ultra Librarian DSC6023JI2A-00A7 CAD Model

Description

Product Overview: DSC6023JI2A-00A7

The DSC6023JI2A-00A7 is a state-of-the-art MEMS oscillator from Microchip Technology, designed to deliver exceptional timing accuracy and stability in a variety of electronic applications. This miniature, low-power component is a perfect solution for designers looking to optimize their systems for power consumption while maintaining high performance.

Key Features

  • Frequency Range: This device offers a frequency range of 2.3 MHz to 170 MHz, making it versatile for a wide range of applications, from microprocessors to networking equipment.
  • Supply Voltage: Operating on a supply voltage of 1.71V to 3.63V, the DSC6023JI2A-00A7 is designed for energy-efficient operations, suitable for battery-powered and portable devices.
  • Output Type: The oscillator provides a CMOS/LVCMOS output, ensuring compatibility with most digital circuits and providing a reliable, stable signal.
  • Package: Enclosed in a 4-SMD, no lead package, the component boasts a compact footprint that is ideal for space-constrained applications.
  • Temperature Stability: With an impressive temperature stability, the device ensures consistent performance across a wide temperature range, which is critical for industrial and automotive applications.
  • RoHS Compliant: The DSC6023JI2A-00A7 adheres to RoHS standards, ensuring it meets environmental and safety regulations for electronic components.

Applications

The versatility of the DSC6023JI2A-00A7 MEMS oscillator makes it an excellent choice for a diverse array of applications. It is widely used in:

  • Consumer electronics such as wearable devices, smart home systems, and multimedia gadgets.
  • Industrial automation, where precision and reliability are paramount.
  • Telecommunication equipment, including routers and switches, where consistent data transmission is required.
  • Automotive electronics, offering robust performance under harsh environmental conditions.
  • Internet of Things (IoT) devices, where power efficiency and small form factor are critical.

With its combination of high performance, low power consumption, and compact size, the DSC6023JI2A-00A7 from Microchip Technology represents a superior choice for designers who require a reliable and efficient timing solution.
