Products specifications

Category Crystals, Oscillators, Resonators - Programmable Oscillators
Mfr Microchip Technology
Series DSC61XX
Package Bulk
Product Status Obsolete
Base Resonator MEMS
Type XO (Standard)
Available Frequency Range 1 MHz ~ 100 MHz
Function Standby
Output CMOS
Voltage - Supply 1.71V ~ 3.63V
Frequency Stability (Total) ±50ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 3mA (Typ)
Ratings AEC-Q100
Mounting Type Surface Mount

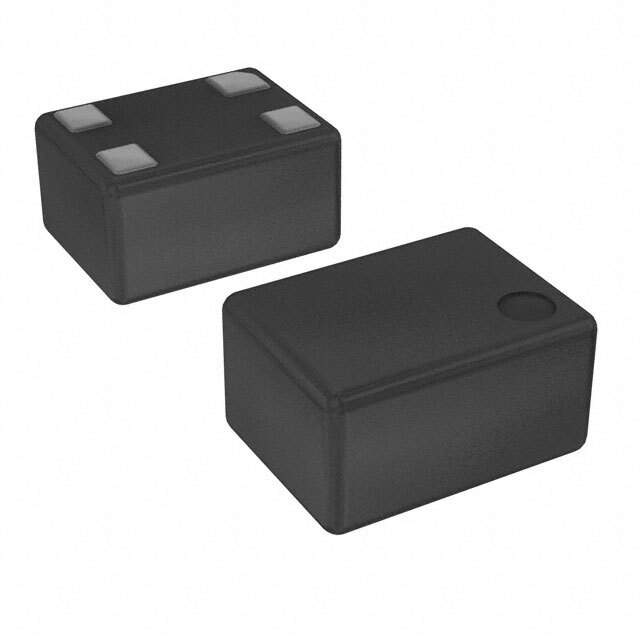

Package / Case 4-SMD, No Lead
Size / Dimension 0.063" L x 0.047" W (1.60mm x 1.20mm)
Height - Seated (Max) 0.035" (0.89mm)
Current - Supply (Disable) (Max) 12 µA
Standard Package 1
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1343012-DSC6111HI1A-PROGRAMMABLE
Ultra Librarian 3D Model Ultra Librarian DSC6111HI1A-PROGRAMMABLE CAD Model

Description

Microchip Technology's DSC6111HI1A-PROGRAMMABLE Oscillator

The DSC6111HI1A-PROGRAMMABLE is a cutting-edge silicon MEMS oscillator designed and manufactured by Microchip Technology, a leader in microcontroller, mixed-signal, analog, and Flash-IP integrated circuits. This device is a testament to Microchip's commitment to providing high-quality, reliable timing solutions that meet the evolving needs of modern electronic systems.

The DSC6111HI1A-PROGRAMMABLE oscillator is known for its exceptional stability and precision. It offers users the flexibility to program the output frequency according to their specific requirements, making it an ideal choice for a wide range of applications, including but not limited to consumer electronics, IoT devices, industrial automation, and telecommunications systems.

Key features of the DSC6111HI1A-PROGRAMMABLE include:

  • Programmable Frequency: Users can tailor the oscillator's frequency to their needs, providing versatility across different projects and applications.
  • Low Power Consumption: The device is designed for energy efficiency, which is crucial for battery-powered and portable applications.
  • High Stability: It offers excellent frequency stability over a wide temperature range, ensuring reliable performance under varying environmental conditions.
  • Compact Size: The oscillator comes in a small package, making it suitable for space-constrained applications without compromising on performance.
  • Low Jitter: With its low phase jitter, the DSC6111HI1A-PROGRAMMABLE is perfect for applications that require high signal integrity.

Moreover, the DSC6111HI1A-PROGRAMMABLE oscillator is designed to be highly durable and resilient, with an extended operating temperature range that ensures functionality in both commercial and industrial settings. Its robustness is complemented by a reduced need for external components, simplifying the design and reducing the overall bill of materials for product development.

Whether you're developing high-performance computing systems, consumer electronics, or advanced communication networks, the DSC6111HI1A-PROGRAMMABLE from Microchip Technology offers a reliable and flexible timing solution that can be easily integrated into your project, ensuring that your products keep pace with the demands of today's fast-moving technological landscape.
