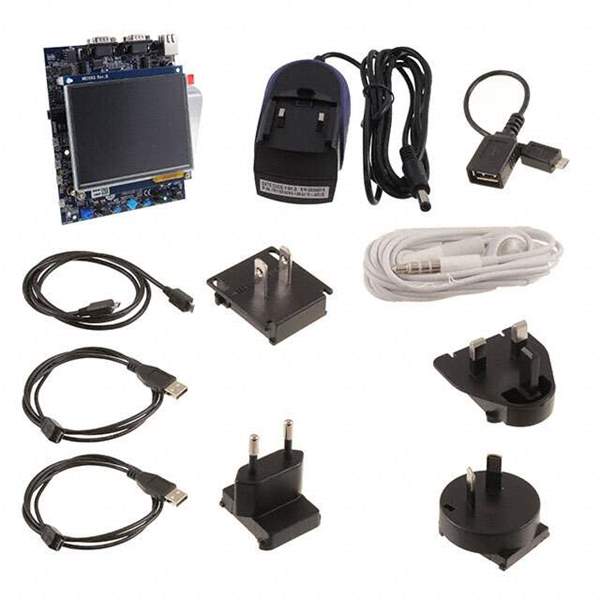

The STM32H753I-EVAL2 from STMicroelectronics is a high-end evaluation board designed for the STM32H7 series microcontrollers. This board provides a rich set of features that make it an ideal platform for complex applications and enables rapid development and prototyping with the STM32H753XI microcontrollers.

Key Features

• Equipped with the STM32H753IIK6, it delivers the maximum performance of the STM32H7 series with the ARM® Cortex®-M7 core running up to 400 MHz.
• Comprehensive set of interfaces including four I2Cs, three SPIs, three USARTs, two UARTs, CAN, and USB OTG HS and FS with Micro-AB connectors.
• On-board ST-LINK/V3 debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port.
• Advanced connectivity with Ethernet compliant with IEEE-802.3-2002 and a variety of other connectivity options for flexible application development.
• Rich multimedia features with a 4.3" WQVGA touchscreen TFT color LCD, digital camera module interface, SAI audio codec, stereo headphone jack output, and speaker outputs.
• Flexible power supply options through USB Type-C, external sources, or Power over Ethernet (PoE).
• On-board memory featuring 2 Mbytes of Flash memory, 64 Mbytes of SDRAM, 512+2 Kbytes of SRAM, and 2 Gbytes (or more) of SDIO microSD card.
• Comprehensive set of hardware security features including TrustZone and cryptographic hardware acceleration.

Development Flexibility

The STM32H753I-EVAL2 is a comprehensive development tool that allows developers to explore all the features of the STM32H7 series microcontrollers. It is equipped with an array of connectors and hardware features that make it suitable for a wide range of applications, including industrial control, medical equipment, consumer electronics, and IoT devices. The evaluation board is supported by a range of software tools, including the STM32CubeH7 MCU Package and various third-party development environments.

Support and Resources

STMicroelectronics provides extensive support for the STM32H753I-EVAL2 through a detailed user manual, schematic diagrams, and a suite of software tools for development. Additionally, a dedicated community and technical resources are available online, including application notes, software libraries, and development tips to facilitate the design process and speed up time-to-market.
