Products specifications

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr STMicroelectronics
Series STM32F7
Package Tray
Core Processor ARM® Cortex®-M7
Core Size 32-Bit Single-Core
Speed 216MHz
Connectivity CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, UART/USART, USB OTG
Peripherals Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT
Number of I/O 140
Program Memory Size 2MB (2M x 8)
Program Memory Type FLASH
RAM Size 512K x 8
Supply Voltage - Operating 1.7V ~ 3.6V
Data Converters A/D 24x12b; D/A 2x12b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)

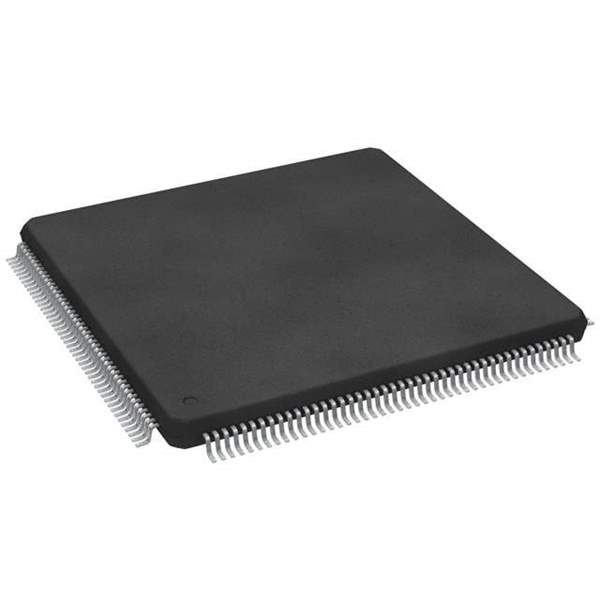

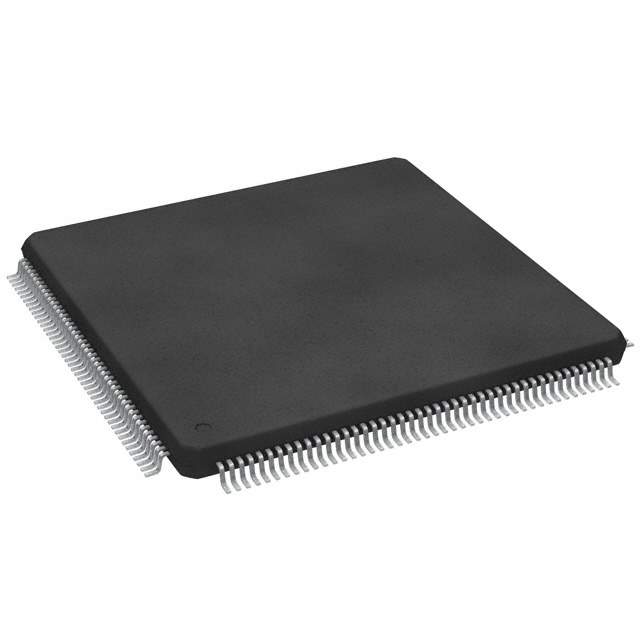

Package / Case 176-LQFP
Supplier Device Package 176-LQFP (24x24)
Base Product Number STM32F767
Other Names 497-16639
Standard Package 40
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Win Source Part Number 1262721-STM32F767IIT6
Ultra Librarian 3D Model Ultra Librarian STM32F767IIT6 CAD Model

Description

The STM32F767IIT6 is a high-performance microcontroller from STMicroelectronics that belongs to the STM32F7 series, which is based on the ARM Cortex-M7 processor core. This advanced microcontroller is designed to offer the best balance between processing power, reduced power consumption, and innovative features, making it an ideal choice for a wide range of applications, including industrial control, medical equipment, home automation, and IoT devices.

Key Features

  • Core: ARM Cortex-M7 processor with double-precision floating-point unit (FPU), running at a frequency of up to 216 MHz.
  • Memory: Equipped with 2 Mbytes of Flash memory and 512+4 Kbytes of RAM, providing ample storage for complex applications and algorithms.
  • Connectivity: Offers a rich set of peripherals for connectivity, including three I2C interfaces, four USARTs and four UARTs, six SPI/I2S, SDMMC, and advanced USB OTG HS and FS interfaces.
  • Advanced Graphics: Comes with an LCD-TFT controller and supports Chrom-ART Accelerator™ for enhanced graphic capabilities.
  • Rich Analog Features: Features dual 12-bit digital-to-analog converters (DACs), three 12-bit analog-to-digital converters (ADCs) with 24 channels, and two analog comparators.
  • Enhanced I/Os: Up to 168 I/O ports with interrupt capability, which support a range of external devices and are suitable for real-time applications.
  • Security: Includes hardware cryptographic acceleration, a true random number generator, and sector protection against read/write operations for enhanced security.
  • Energy Efficient: Designed with ST's ART Accelerator™ as well as an L1 cache, ensuring maximum performance with the lowest possible power consumption.

Applications

The STM32F767IIT6 microcontroller is highly versatile and can be used in a variety of applications. Its high processing power and rich feature set make it suitable for complex tasks such as real-time audio and video processing, while its energy efficiency ensures it's well-suited for battery-operated devices. With its advanced connectivity features, it is also perfect for IoT applications, enabling smart, connected solutions.

Development Support

STMicroelectronics provides extensive support for the STM32F767IIT6 with a comprehensive set of development tools, software libraries, and real-time operating system (RTOS) support. Developers can take advantage of the STM32Cube software ecosystem, which includes the STM32CubeMX configurator and initialization code generator, as well as the STM32CubeIDE integrated development environment, to streamline the development process and reduce time to market.
