Products specifications

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Microchip Technology
Series Military, MIL-PRF-19500/444
Package Bulk
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 50 V
Voltage - Forward (Vf) (Max) @ If 1 V @ 15 mA
Speed Small Signal =< 200mA (Io), Any Speed
Current - Reverse Leakage @ Vr 200 nA @ 50 V
Capacitance @ Vr, F 2pF @ 0V, 1MHz
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Supplier Device Package UB
Operating Temperature - Junction -65°C ~ 150°C
RoHS Status RoHS non-compliant
ECCN EAR99
HTSUS 8541.10.0070
Standard Package 1
Win Source Part Number 1221916-JANTX1N5711UBCA
Ultra Librarian 3D Model Ultra Librarian JANTX1N5711UBCA CAD Model

Description

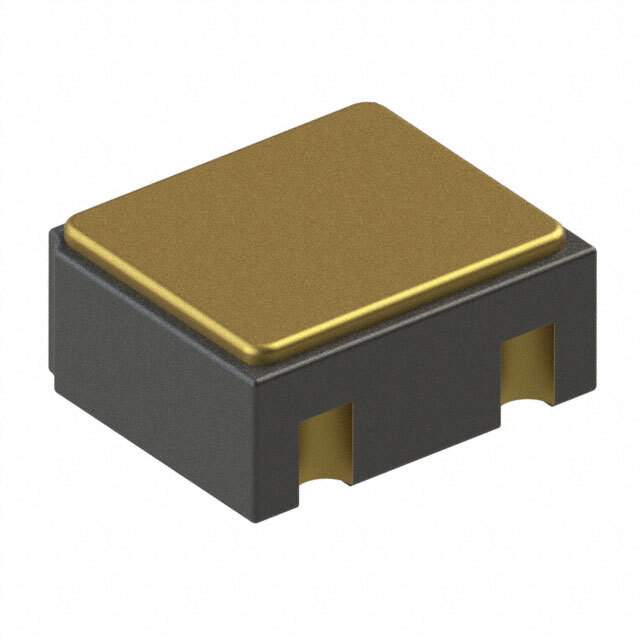

The JANTX1N5711UBCA is a high-quality electronic component manufactured by Microchip Technology, a leader in the semiconductor industry. This product is part of Microchip's extensive range of diodes, specifically designed to meet the rigorous standards of military applications.

Key Features

  • Durable Construction: Built to withstand extreme conditions, ensuring reliability and performance in demanding environments.
  • High-Speed Switching: Offers fast switching capabilities, making it suitable for high-frequency applications.
  • Low Leakage Current: Engineered to have minimal leakage current, which enhances the efficiency of the device it's used in.
  • Hermetically Sealed: Encased in a hermetic package to protect against moisture and other environmental factors.
  • Controlled Avalanche Characteristics: Designed to manage high-energy pulses, providing added protection against surge events.

Applications

The JANTX1N5711UBCA is ideally suited for a variety of mission-critical applications where reliability is paramount. These include:

  • Defense and Aerospace Systems
  • High-Reliability Communication Equipment
  • Power Supply Circuits
  • Radar and Satellite Systems
  • Electronic Warfare and Countermeasures

Specifications

This component adheres to the stringent Joint Army/Navy (JAN) specifications, ensuring top-tier performance and quality. The "TX" level denotes that it has been tested to meet the military standards for semiconductors, offering enhanced reliability.

Quality Assurance

Microchip Technology's commitment to excellence is evident in the JANTX1N5711UBCA, with every unit undergoing rigorous testing to guarantee it meets or exceeds the required military standards. Customers can trust in the component's durability and consistent performance.

Ordering Information

For detailed ordering information and to verify the product's specifications and compatibility, customers are encouraged to visit the official Microchip Technology website or contact authorized distributors. The JANTX1N5711UBCA is available for procurement with the assurance of Microchip's global support network.
