Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package Module
Core Architecture dsPIC
Evaluation Kit Yes
Lead Free Yes
Number of Pins 100
Operating Supply Voltage 3.6 V
Radiation Hardening No
REACH SVHC No SVHC
RoHS Compliant
Win Source Part Number 1009483-MA330024
Categories Embedded - Microprocessors
Manufacturer Microchip Technology
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian MA330024 CAD Model

Description

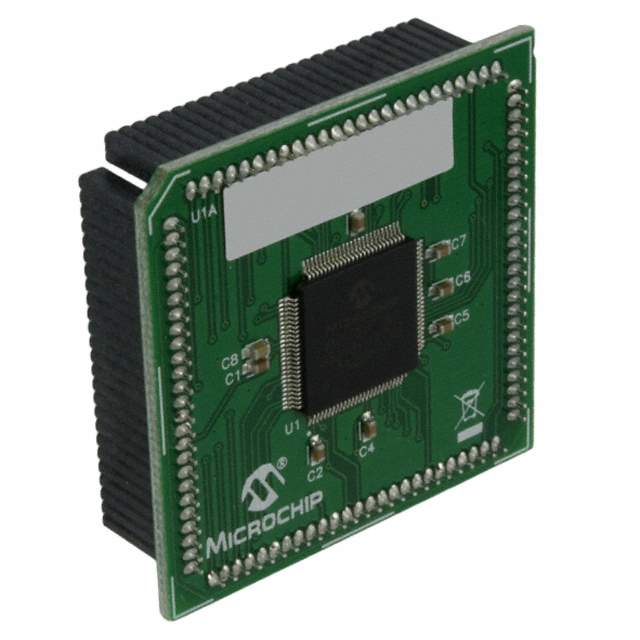

The MA330024 from Microchip Technology is a specialized plug-in module designed to facilitate the development and testing of PIC microcontroller-based applications. This module is part of Microchip's modular development system, which allows for a versatile and efficient approach to building prototypes and designing embedded systems.

At the heart of the MA330024 is a powerful PIC microcontroller, which is pre-programmed with a bootloader. This ensures that engineers and developers can quickly upload their firmware and software without the need for external programmers, streamlining the development process. The module's compact form factor is designed to plug directly into Microchip's development boards, such as the Explorer 16 or Explorer 16/32 development board, providing seamless integration and a user-friendly interface for testing and debugging.

The MA330024 module features a range of peripherals and interfaces that are common in many embedded applications. This includes, but is not limited to, digital I/O, analog inputs, PWM outputs, I2C, SPI, and UART communication interfaces. Such a wide array of functionalities allows developers to explore the capabilities of the PIC microcontroller and to develop a variety of applications ranging from simple control systems to more complex communication-based systems.

In addition to its hardware capabilities, the MA330024 is supported by Microchip's comprehensive software tools. These include the MPLAB X Integrated Development Environment (IDE) and the MPLAB Code Configurator (MCC). These tools provide an intuitive environment for code development, simulation, and debugging, further accelerating the development cycle and enabling rapid prototyping.

The MA330024 is an ideal solution for developers looking for a quick and efficient way to jump-start their PIC microcontroller projects. With its robust set of features, ease of use, and compatibility with Microchip's development ecosystem, the MA330024 module is a valuable asset for both educational purposes and professional product development.
