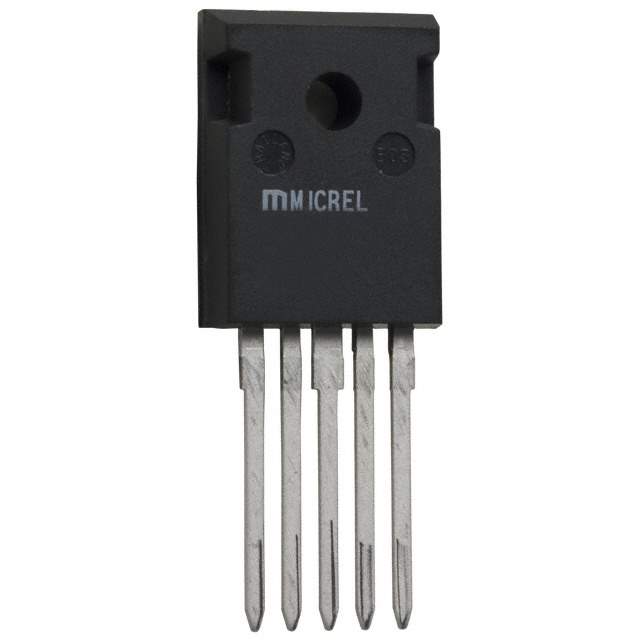

MIC29752BWT

Part No MIC29752BWT
Manufacturer Microchip Technology
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO ADJ 7.5A TO247-5
Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Microchip Technology
Packaging Tube/Rail
Status Obsolete(EOL)
Output Type Adjustable
Number of Regulators 1
Maximum Input Voltage 26V
Nominal Output Voltage (Min/Fixed) 1.25V
Maximum Output Voltage 25V
Dropout Voltage-Max 0.75V @ 7.5A
Output Current 7.5A
Operating Supply Current 75mA
Control Features Enable
Protection Features Over Current, Over Temperature, Reverse Polarity, Transient Voltage
Temperature Range - Operating -40°C to 125°C
Mounting Through Hole
Case / Package TO-247-5
Win Source Part Number 1076381-MIC29752BWT
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MIC29752BWT CAD Model

Description

Introducing the MIC29752BWT from Microchip Technology

Microchip Technology's MIC29752BWT is a high-performance, adjustable-output, synchronous buck (step-down) regulator that offers a compact and efficient power management solution for a wide range of applications. This regulator is designed to deliver up to 7.5A of continuous current while maintaining a low-profile and minimal footprint, making it an ideal choice for space-constrained environments.

Key Features:

  • High Current Output: Capable of delivering up to 7.5A of continuous output current, the MIC29752BWT is well-suited for high-power applications.
  • Wide Input Voltage Range: This regulator operates over a broad input voltage range from 4.6V to 26V, accommodating a variety of power sources and systems.
  • Adjustable Output Voltage: The output voltage is adjustable from 0.8V to 5.5V, providing flexibility to power a diverse set of ICs and devices.
  • High Efficiency: With its synchronous buck design, the MIC29752BWT achieves high efficiency, which helps to reduce power losses and improve system reliability.
  • Thermal Management: The device includes thermal shutdown protection, ensuring safe operation under high current conditions and preventing damage from overheating.
  • Protection Features: Built-in features such as under-voltage lockout (UVLO), over-current protection (OCP), and over-temperature protection (OTP) safeguard your system against various fault conditions.

Applications:

The versatility of the MIC29752BWT makes it suitable for a wide range of applications, including but not limited to:

  • Telecommunications and networking equipment
  • Industrial systems and controls
  • Computing and storage platforms
  • Consumer electronics
  • Point-of-load (POL) power supplies

With its robust feature set and high reliability, the MIC29752BWT from Microchip Technology is a powerful solution for your power management needs. Whether you are designing a new system or upgrading an existing one, this regulator promises to deliver the performance and flexibility required for today's demanding electronic applications.
