Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded>Microcontrollers
Manufacturer Microchip Technology
Packaging Tube
Core Processor PIC
Core Size 8-Bit
Speed 48MHz
Connectivity I2C, LINbus, SPI, UART/USART, USB
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Number of I/O 14
Program Memory Size 14KB (8K x 14)
Program Memory Type FLASH
RAM Size 1K x 8
Voltage - Supply (Vcc/Vdd) 2.3V ~ 5.5V
Data Converters A/D 9x10b; D/A 1x5b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 125°C
Mounting Through Hole

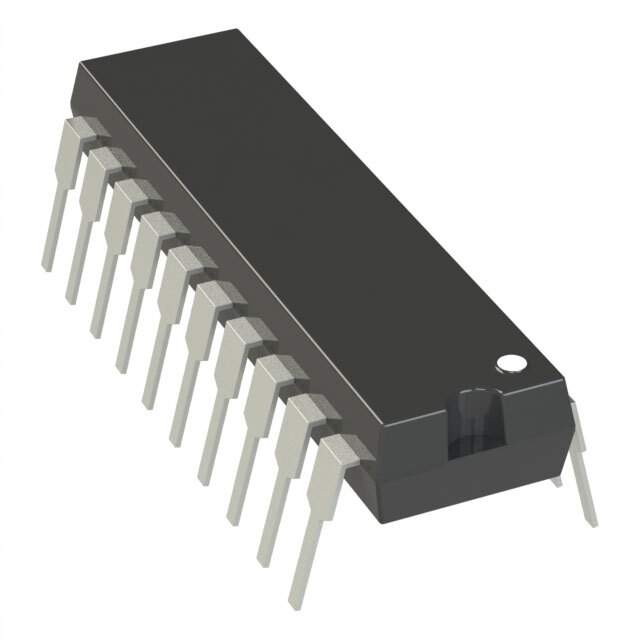

Case / Package 20-DIP (0.300", 7.62mm)
Supplier Device Package 20-PDIP
Base Product Number PIC16F1459
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Standard Package 22
Win Source Part Number 1318768-PIC16F1459-E/P
Ultra Librarian 3D Model Ultra Librarian PIC16F1459-E/P CAD Model

Description

Microchip Technology PIC16F1459-E/P Microcontroller

The PIC16F1459-E/P is a versatile 8-bit microcontroller from Microchip Technology, tailored for a wide range of applications requiring a robust and efficient control solution. This particular model comes in a PDIP (Plastic Dual In-line Package) format, making it suitable for prototyping and small production runs where manual assembly or through-hole mounting is preferred.

At the heart of the PIC16F1459-E/P is a high-performance RISC CPU, which operates at a maximum speed of 48 MHz. This speed is achieved by using an internal 16 MHz oscillator with a 3x PLL (Phase-Locked Loop) option, ensuring precise timing for critical applications. The device features 14 KB of Flash program memory, allowing ample space for complex programs, and 1 KB of SRAM for variable storage.

One of the standout features of this microcontroller is its integrated full-speed USB 2.0 compliant module. This enables the PIC16F1459-E/P to easily connect with computers and other USB devices, providing a straightforward solution for communication and control tasks. Furthermore, the microcontroller includes an array of peripherals that enhance its functionality, such as an 8-bit timer, two 16-bit timers, 10-bit Analog-to-Digital Converters (ADC), and multiple PWM outputs for precise control over motors and other actuators.

The device also supports various serial communication protocols, including I2C, SPI, and EUSART, allowing it to interface with a wide range of sensors, memory modules, and other integrated circuits. This makes the PIC16F1459-E/P a highly adaptable microcontroller for projects in fields such as automation, consumer electronics, and IoT devices.

For those concerned with power efficiency, the PIC16F1459-E/P has power-managing features such as Power-Saving Sleep mode, Idle mode, and an ultra-low-power watchdog timer, which help in reducing the overall power consumption of the end product. With its extended operating voltage range from 2.3V to 5.5V, the microcontroller is well-suited for battery-operated and portable applications.

In summary, the Microchip Technology PIC16F1459-E/P microcontroller is a feature-rich and flexible solution for designers and hobbyists alike, providing a solid foundation for a myriad of embedded systems and applications.
