PIC16F616 Microcontroller from Microchip Technology

The PIC16F616 is a versatile 8-bit microcontroller from Microchip Technology, designed for embedded applications requiring a compact and efficient controller with a good balance of performance, power consumption, and peripherals. This microcontroller is part of Microchip's extensive PIC family, known for its ease of use, reliability, and affordability, making it a popular choice among hobbyists, educators, and professionals alike.

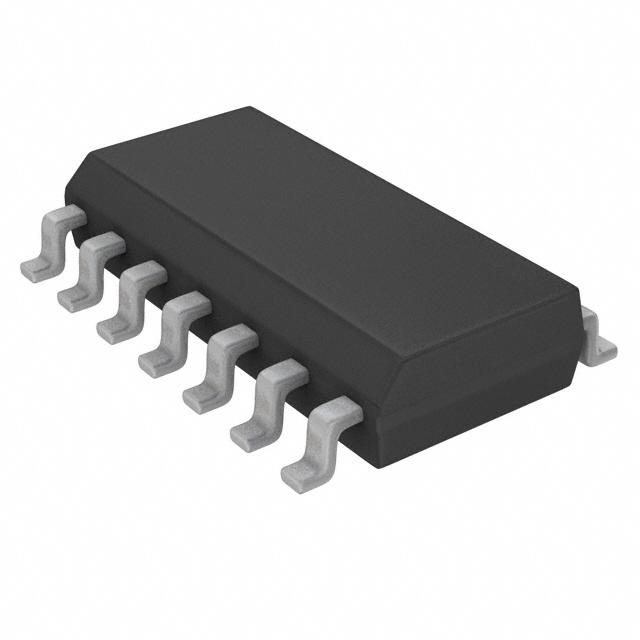

The PIC16F616 features a 14-pin package and is equipped with a high-performance RISC CPU, providing a robust platform for a wide range of applications. The device operates at a speed of up to 20 MHz, with an internal oscillator block that supports a range of selectable frequencies, allowing for flexible clock system design and power management.

With 3.5 KB of Flash program memory and 128 bytes of RAM, the PIC16F616 offers ample space for small to medium complexity programs. Additionally, it includes 256 bytes of EEPROM data memory, which is ideal for non-volatile storage of configuration settings or small amounts of data that must be preserved between power cycles.

One of the standout features of the PIC16F616 is its integrated 10-bit Analog-to-Digital Converter (ADC) with up to 8 channels, making it suitable for interfacing with analog sensors and performing basic data acquisition tasks. The microcontroller also includes two comparator modules, which can be used for a variety of functions, such as voltage monitoring and signal detection.

The device supports various communication protocols with its Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART) module, allowing for serial communication over UART, which can be used for interfacing with PCs, GPS modules, and other serial devices.

For timing and pulse-width modulation tasks, the PIC16F616 is equipped with a Timer0 module and a Timer1 module, as well as a PWM module, which can be used for motor control, LED dimming, and other applications requiring precise signal generation.

In summary, the PIC16F616 from Microchip Technology is a feature-rich and cost-effective microcontroller that is suitable for a variety of applications, offering a good mix of memory, analog and digital peripherals, and ease of use for developers.
