Products specifications

Categories Integrated Circuits
Manufacturer Microchip Technology
Packaging Tube
Status Obsolete
Driven Configuration Low-Side
Channel Type Single
Number of Drivers 1
Gate Type N-Channel, P-Channel MOSFET
Supply Voltage (V) 7V ~ 18V
Logic Voltage - VIL, VIH 0.8V, 2.4V
Current - Peak Output (Source, Sink) 6A, 6A
Input Type Inverting
Rise / Fall Time 23ns, 25ns
Temperature Range - Operating -55°C ~ 150°C
Mounting Style Through Hole
Manufacturer Package 8-CDIP
Supplier Device Package 8-CERDIP
Family Part Number TC429
Manufacturer Pack Quantity 56
MSL Level Not Applicable
Win Source Part Number 1264544-TC429MJA
Manufacturer Homepage www.telcom-semi.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TC429MJA CAD Model

Description

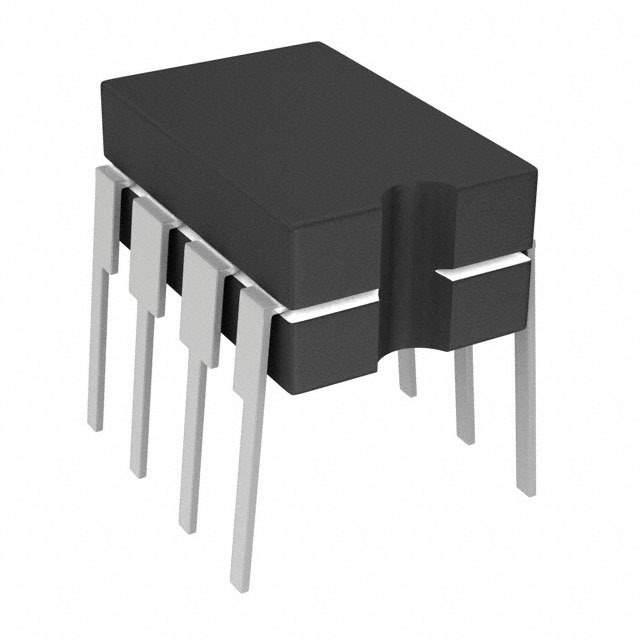

Microchip Technology TC429MJA - High-Speed MOSFET Drivers

The TC429MJA is a remarkable high-speed MOSFET driver from Microchip Technology, designed to cater to the demanding needs of power management and conversion systems. This driver is capable of delivering peak currents of up to 1.5A into highly capacitive loads, making it an ideal choice for driving MOSFETs and IGBTs in a variety of applications.

With its robust design, the TC429MJA ensures reliable operation in harsh environments. It is characterized for operation over the full military temperature range of -55°C to +125°C, which makes it suitable for use in military, aerospace, and other high-reliability applications. The device is packaged in an 8-lead CERDIP (Ceramic Dual In-line Package), which provides excellent thermal performance and resistance to environmental factors.

The TC429MJA boasts a latch-up protected design, ensuring that the device remains stable under any condition within its power and voltage ratings. Its high switching speeds (typical rise and fall times are 25ns with a 1000pF load) enable efficient operation, reducing switching losses in MOSFETs and improving the overall efficiency of the power system. This driver also features a logic input threshold that is compatible with standard CMOS or LSTTL outputs, down to 3.3V logic, which allows for easy interfacing with a wide range of control circuits.

Another key feature of the TC429MJA is its cross-conduction protection, which prevents simultaneous conduction of both the output transistors, a critical factor in preventing damage to the power switching transistors. Additionally, the device includes an undervoltage lockout (UVLO) feature, which ensures that the driver operates only when the supply voltage is within the specified range, thus safeguarding the system from low voltage conditions that could lead to erratic operation.

Whether you're designing power supplies, motor controllers, or any system that requires efficient power switching, the TC429MJA from Microchip Technology is a reliable and high-performance solution that is sure to meet your needs.
