Products specifications

Categories Integrated Circuits
Manufacturer Microchip Technology
Packaging Tube/Rail
Status Active
Driven Configuration Low-Side
Channel Type Independent
Number of Drivers 2
Gate Type N-Channel, P-Channel MOSFET
Supply Voltage - Operating 4.5 V to 18 V
Logic Voltage - VIL, VIH 0.8V, 2.4V
Current - Peak Output (Source, Sink) 1.5A, 1.5A
Input Type Non-Inverting
Rise and Fall Time 19ns, 19ns
Temperature Range - Operating -40°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 8-SOIC
Win Source Part Number 038448-TC4427EOA
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name TC4427
Introduction Date July 03, 1997
ECCN EAR99
Country of Origin China, Taiwan, Thailand, United States of America
Halogen Free Not Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian TC4427EOA CAD Model

Description

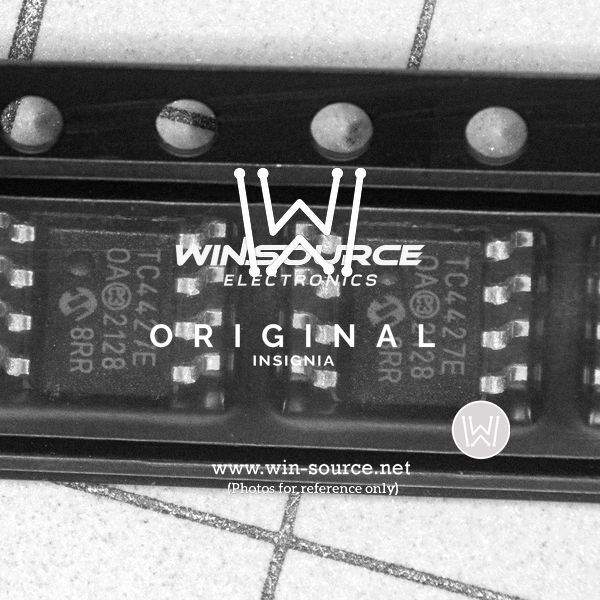

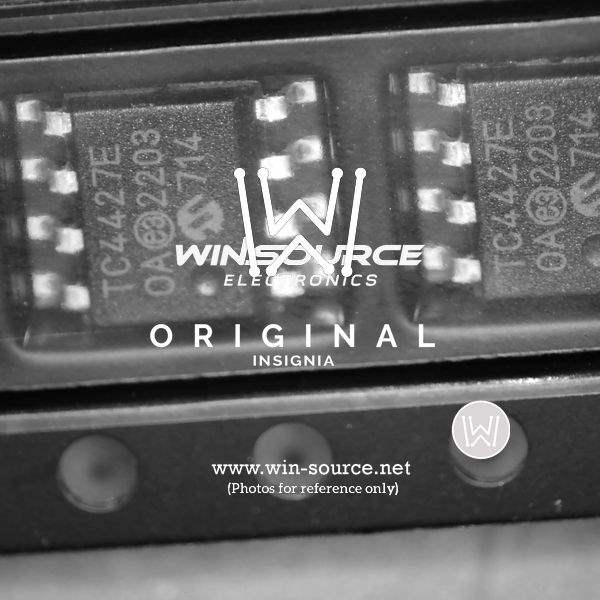

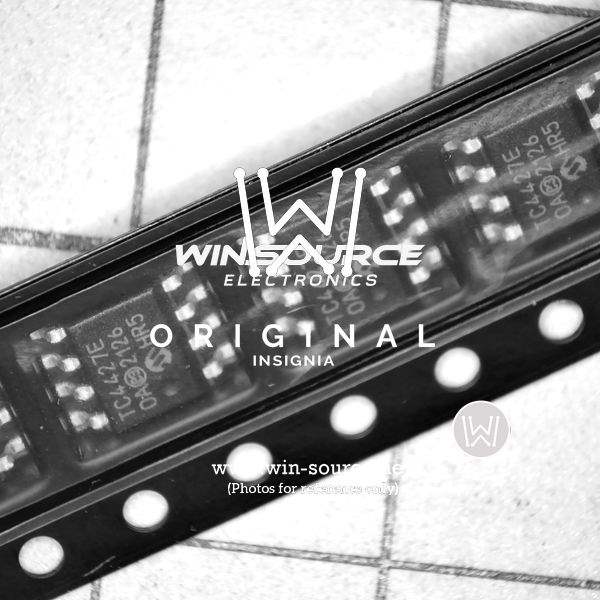

Microchip Technology's TC4427EOA MOSFET Driver

The TC4427EOA is a robust, high-speed, dual-channel MOSFET driver designed and manufactured by Microchip Technology. This driver is specifically engineered to convert TTL or CMOS input logic levels to a higher voltage and current output with the capability to drive a wide range of power MOSFETs and IGBTs. The device is particularly suited for applications that require efficient power management and high-speed operation.

Key Features

  • High Peak Output Current: Each of the two output channels of the TC4427EOA can deliver up to 1.5A, making it suitable for driving large capacitive loads with excellent transient response.
  • Wide Operating Range: The device operates with a supply voltage range from 4.5V to 18V, accommodating various application needs from standard logic level voltages to higher power requirements.
  • High-Speed: With a typical delay time of 25ns and rise and fall times of 30ns, the TC4427EOA ensures swift and responsive control of the connected MOSFETs, making it ideal for high-frequency switching applications.
  • Latch-Up Protection: The driver is designed to withstand up to 500mA of reverse current, providing robust protection against latch-up, a common issue in MOSFET drivers that can lead to device failure.
  • Low Shoot-Through Current: Careful design considerations have been made to minimize the cross-conduction and shoot-through current, enhancing the overall efficiency and reliability of the system.

Applications

The TC4427EOA is versatile and can be used in a wide array of applications, including:

  • Switch Mode Power Supplies (SMPS)
  • DC-to-DC converters
  • Motor control circuits
  • Power MOSFET gate drivers
  • Line drivers
  • Class D switching amplifiers

Encased in an 8-pin SOIC package, the TC4427EOA combines a compact form factor with powerful driving capabilities. Its robust design and high-performance characteristics make it an excellent choice for designers looking to optimize power efficiency and speed in their circuit designs. With Microchip's reputation for quality and support, the TC4427EOA is a reliable and efficient solution for driving MOSFETs in a variety of electronic applications.
