TVS515 Microchip Technology – Price, Stock & Datasheet

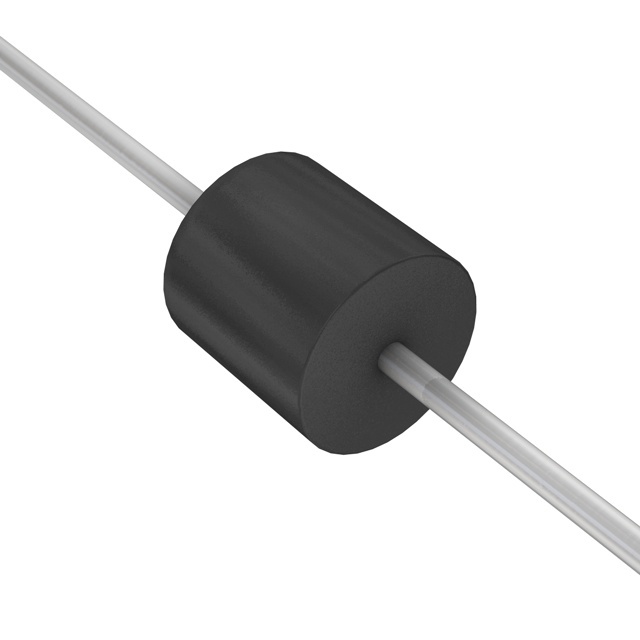

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 15V
Voltage - Breakdown (Min) 16.7V
Voltage - Clamping (Max) @ Ipp 25.2V
Current - Peak Pulse (10/1000µs) 19.8A (8/20µs)
Power - Peak Pulse 500W
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -65°C ~ 175°C (TJ)
Mounting Type Through Hole
Case / Package Axial
Supplier Device Package Axial
Package Tube
Supply and Demand Status Shortage
Win Source Part Number 1493307-TVS515
Ultra Librarian 3D Model Ultra Librarian TVS515 CAD Model
