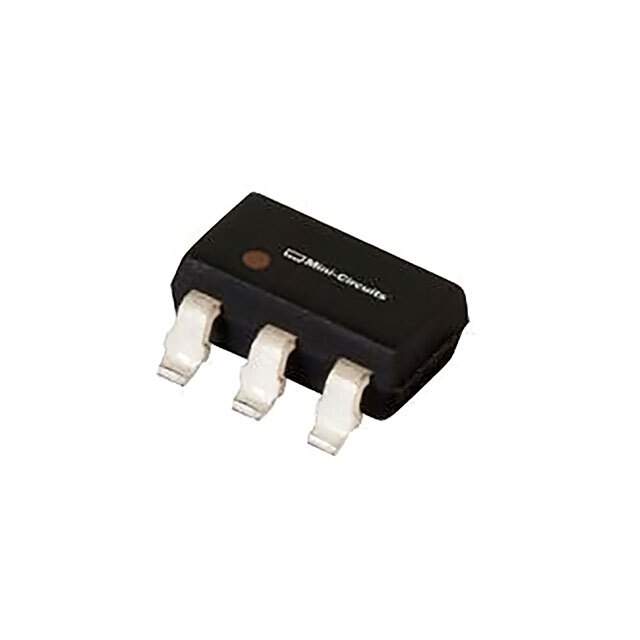

D19GA+ Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF/IF and RFID>RF Directional Coupler
Mfr Mini-Circuits
Package Tape & Reel (TR)
Coupler Type Standard
Frequency 1.4GHz ~ 1.7GHz
Coupling Factor 20.7dB
Applications GPS
Power - Max 4W
Return Loss 27dB
Package / Case SOT-23-6
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Other Names 3157-D19GA+TR
Standard Package 1,000
Win Source Part Number 1170466-D19GA+
Ultra Librarian 3D Model Ultra Librarian D19GA+ CAD Model

Description

The 1170466-D19GA+ is an RF directional coupler from Mini-Circuits that is ideal for GPS applications.

  • Frequency Range: 1.4GHz to 1.7GHz
  • Coupling Factor: 20.7dB
  • Package/Case: SOT-23-6
  • Power Rating: 4W
  • Return Loss: 27dB
  • Coupler Type: Standard
  • Packaging: Tape & Reel (TR)
  • Package Standard: 1,000
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8548.00.0000
