Products specifications

Category Integrated Circuits (ICs) - Embedded - Microprocessors
Mfr NXP
Series MPC83xx
Package Tray
Product Status Obsolete
Core Processor PowerPC e300c3
Number of Cores/Bus Width 1 Core, 32-Bit
Speed 333MHz
Co-Processors/DSP Security; SEC 2.2
RAM Controllers DDR, DDR2
Graphics Acceleration No
Ethernet 10/100/1000Mbps (2)
USB USB 2.0 + PHY (1)
Voltage - I/O 1.8V, 2.5V, 3.3V
Temperature Range - Operating 0°C ~ 105°C (TA)
Security Features Cryptography
Mounting Type Surface Mount

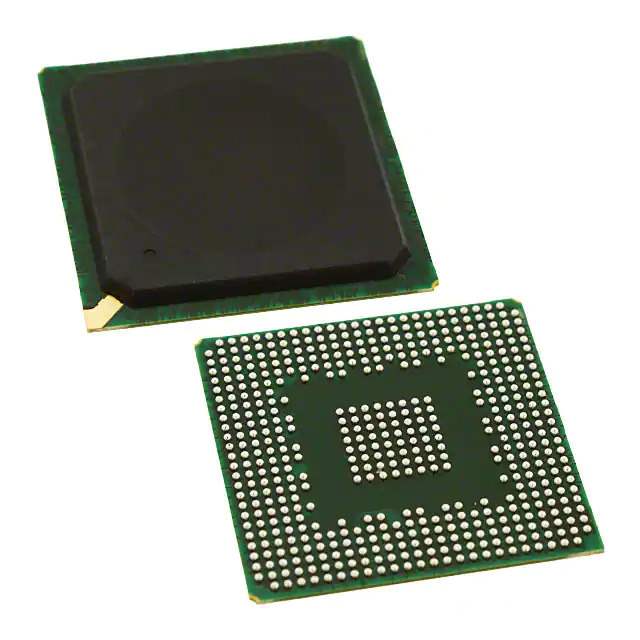

Package / Case 516-BBGA Exposed Pad
Supplier Device Package 516-TEPBGA (27x27)
Additional Interfaces DUART, HSSI, I2C, PCI, SPI
Base Product Number MPC83
Standard Package 40 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 5A002A1 FRE
HTSUS 8542.31.0001
Win Source Part Number 643681-MPC8313EVRAFF
Ultra Librarian 3D Model Ultra Librarian MPC8313EVRAFF CAD Model

Description

NXP MPC8313EVRAFF PowerQUICC II Pro Processor

The NXP MPC8313EVRAFF is a highly integrated microprocessor that is part of the PowerQUICC II Pro family, designed to meet the requirements of networking and embedded applications. This processor is built on Power Architecture® technology and is engineered to deliver exceptional performance, connectivity, and integration for a wide range of systems.

At the heart of the MPC8313EVRAFF lies a high-performance e300 core that can run up to 400 MHz, providing the computational power necessary for demanding applications. The processor is equipped with a 32-bit DDR2 memory controller, supporting memory speeds up to 400 MHz, which allows for fast data access and improved overall system responsiveness.

One of the key features of the MPC8313EVRAFF is its rich set of integrated peripherals. It includes dual Ethernet controllers that support 10/100/1000 Mbps speeds, enabling high-speed network connectivity. Additionally, the processor offers a host of other interfaces, such as USB 2.0, UART, SPI, and I²C, making it highly versatile for connecting various external devices and components.

The processor also includes an integrated security engine that supports a variety of algorithms, including DES, 3DES, AES, MD5, and SHA, to ensure secure data transmission and storage, which is crucial for network security applications. The security engine is designed to offload cryptographic operations from the main processor, thereby enhancing overall system performance.

With its low-power design, the MPC8313EVRAFF is an energy-efficient choice for embedded systems, making it suitable for applications where power consumption is a critical factor. The processor is also offered in a thermally efficient 516-pin PBGA package, which aids in maintaining optimal operating temperatures.

Overall, the NXP MPC8313EVRAFF is a powerful and flexible solution for networking, industrial control, automotive, and consumer electronics applications. Its combination of processing power, connectivity options, and integrated security features make it a smart choice for designers looking to create sophisticated systems with minimal external components.
