Products specifications

Categories Sensors
Estimated Pruduction Lead Time 25 Weeks
Features Pressure Sensor 2.18PSI ~ 16.68PSI (15kPa ~ 115kPa) Absolute Male - 0.19" (4.93mm) Tube 0.2 V ~ 4.7 V 6-SIP Module
Manufacturer NXP
Series MPX5100
Package Tray
Operating Temperature Range -40°C ~ 125°C
Package 6-SIP Module
Family Name MPX5100
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Quantity per package 100
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 885874-MPX5100AP
Ultra Librarian 3D Model Ultra Librarian MPX5100AP CAD Model

Description

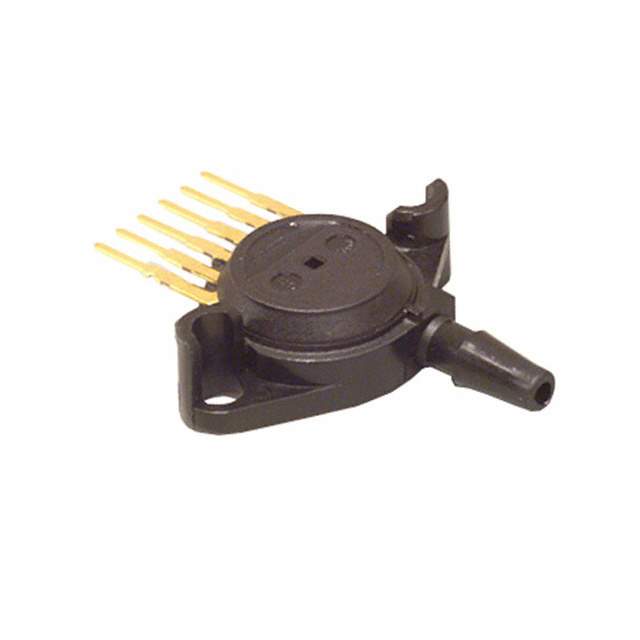

The NXP MPX5100AP is a state-of-the-art pressure sensor that provides a highly accurate and reliable solution for a wide range of applications. This integrated piezoresistive transducer is a member of NXP's MPX series and is designed to measure absolute air pressure within the range of 0 to 100 kPa. Its robust design and high-quality construction make it an ideal choice for systems that require precise pressure monitoring.

Key Features

  • Pressure Range: 0 to 100 kPa absolute pressure range, which is suitable for various applications, including medical devices, industrial controls, and HVAC systems.
  • Temperature Compensated: The MPX5100AP includes temperature compensation from -40°C to +125°C, ensuring stable performance across a wide range of operating conditions.
  • High Sensitivity: The sensor's high sensitivity allows for the detection of minute pressure changes, making it extremely reliable for critical applications.
  • Output: The sensor provides a linear voltage output that is directly proportional to the applied pressure, with a typical output of 0.2 to 4.7 volts relative to the pressure input.
  • Calibration: Each MPX5100AP sensor is calibrated and temperature compensated for sensor offset, sensitivity, temperature effects, and non-linearity.
  • Package: The sensor comes in a durable, small-outline package with ported and non-ported options, providing flexibility for various design requirements.

Applications

The NXP MPX5100AP is versatile and can be used in a multitude of applications, including:

  • Automotive systems
  • Medical devices such as respiratory equipment
  • Pneumatic control systems
  • Environmental monitoring
  • Industrial process control
  • Altimeters and barometers

Quality and Reliability

NXP Semiconductors is known for its commitment to quality, and the MPX5100AP is no exception. This sensor is designed to meet the rigorous demands of industrial and consumer markets, ensuring long-term reliability and performance. Whether you're developing a prototype or mass-producing a product, the MPX5100AP is a dependable choice for integrating accurate pressure sensing capabilities into your project.
