Products specifications

Manufacturer NXP
Win Source Part Number 1235846-PCA8565BS
Manufacturer Homepage www.nxp.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PCA8565BS CAD Model

Description

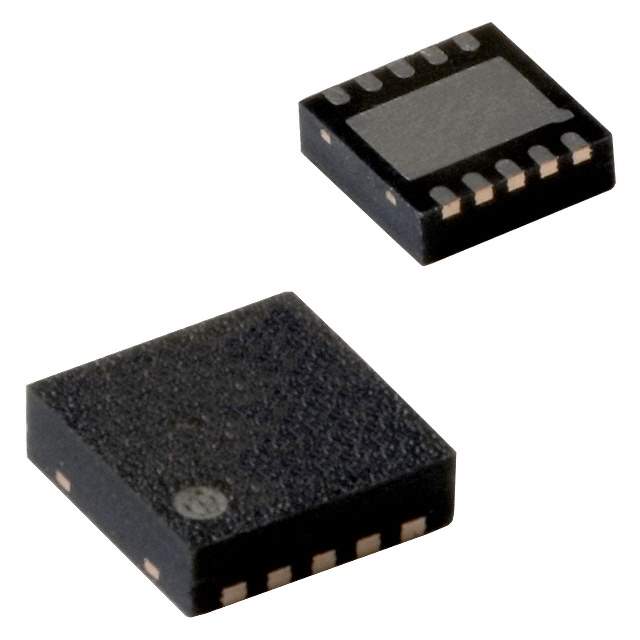

Product Overview: PCA8565BS - NXP Real-Time Clock

The PCA8565BS is a CMOS1 Real-Time Clock (RTC) and calendar optimized for low power consumption and with an I2C-bus interface. Manufactured by NXP Semiconductors, this device offers a comprehensive feature set that makes it an ideal choice for a wide range of applications in consumer electronics, industrial, and utility meters among others.

Key Features

  • Timekeeping Accuracy: The device maintains accurate timekeeping with a frequency offset at room temperature, ensuring high precision in time-related functions.
  • Low Power Consumption: Designed for power-sensitive applications, the PCA8565BS consumes minimal power, making it suitable for battery-operated systems.
  • I2C-Bus Interface: Featuring a serial I2C-bus interface, it allows for easy integration into existing systems with minimal interfacing requirements.
  • Programmable Clock Output: The programmable clock output function enables the PCA8565BS to provide a versatile clock signal for external devices.
  • Alarm and Timer Functions: It includes an alarm function and a timer function that can be used for wake-up on interrupt signals, adding to its versatility.

Applications

The PCA8565BS is suitable for a variety of applications, including:

  • Mobile phones and PDAs
  • Utility meters
  • Home appliances
  • Healthcare devices
  • Automotive control systems

Technical Specifications

Some of the technical specifications of the PCA8565BS include:

  • Operating Voltage Range: 1.3 V to 5.5 V
  • Low timekeeping voltage: down to 1.0 V
  • Temperature Range: -40°C to +85°C
  • Packaging: Offered in an 8-pin TSSOP package

With its combination of features, the PCA8565BS from NXP stands out as a reliable and efficient solution for real-time clock and calendar functions in a multitude of electronic applications.
