Products specifications

Categories Discrete Semiconductor Products
Manufacturer NXP
Packaging Reel - TR
Status Obsolete(EOL)
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 550mV @ 1A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 1mA @ 30V
Capacitance @ Vr, F 50pF @ 4V, 1MHz
Mounting SMD (SMT)

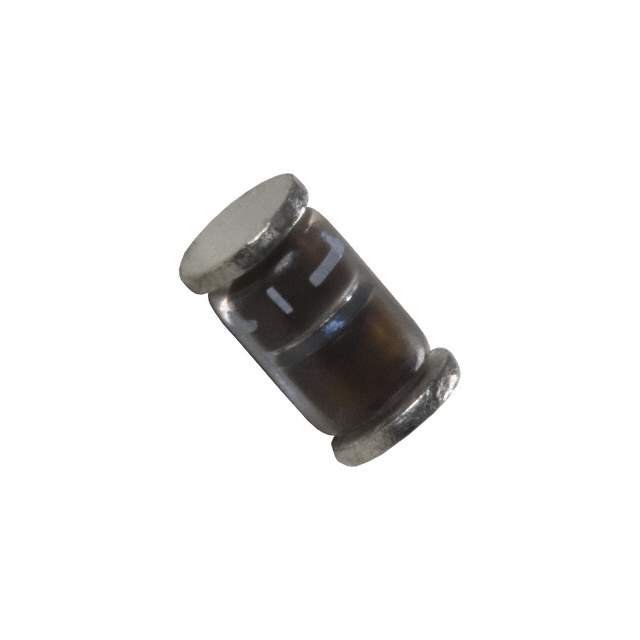

Case / Package MELF
Operating Temperature - Junction 125°C (Max)
Win Source Part Number 094592-PRLL5818
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name PRLL5818
Introduction Date November 01, 1993
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian PRLL5818 CAD Model

Description

The NXP PRLL5818 is a cutting-edge rectifier designed to meet the demanding needs of modern electronic applications. This high-efficiency, low-leakage diode is perfect for high-frequency DC/DC converters, freewheeling diodes, and polarity protection applications. Its exceptional performance ensures that it is an ideal choice for a wide range of products, from consumer electronics to industrial systems.

Key Features

  • Low Forward Voltage: The PRLL5818 boasts a low forward voltage drop, which enhances overall system efficiency and reduces thermal issues in circuit operation.
  • High Current Capability: With its ability to handle high currents, the PRLL5818 is well-suited for applications requiring robust power handling without sacrificing performance.
  • Fast Switching Speed: The device's fast switching speed makes it an excellent choice for high-frequency rectification, contributing to reduced noise and improved power efficiency.
  • Low Leakage Current: The diode's low leakage current is essential for maintaining energy efficiency, particularly in battery-powered devices where power conservation is critical.
  • High Reliability: NXP's commitment to quality ensures that the PRLL5818 is a highly reliable component, capable of withstanding harsh operating conditions and delivering consistent performance over time.

Applications

The versatility of the PRLL5818 allows it to be used in a variety of applications, including:

  • Power management modules
  • Automotive systems
  • Portable devices and battery chargers
  • Switching power supplies
  • LED lighting solutions

Technical Specifications

The PRLL5818 is offered in a compact package and is characterized by the following specifications:

  • Reverse Voltage: 30 V
  • Forward Current: 1 A
  • Max Forward Voltage: 0.93 V at 1 A
  • Reverse Current: 5 µA at 25°C

For engineers and designers looking for a high-performance rectifier, the NXP PRLL5818 is an excellent choice that balances efficiency, speed, and reliability. Its state-of-the-art design and robust construction make it a valuable component in any power conversion or management circuit.
