Products specifications

Categories Integrated Circuits
Manufacturer NXP
Packaging Tube/Rail
Status Obsolete(EOL)
Mounting SMD (SMT)
Case / Package 9-SIL MPF
Win Source Part Number 212738-TDA3653B
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TDA3653B CAD Model

Description

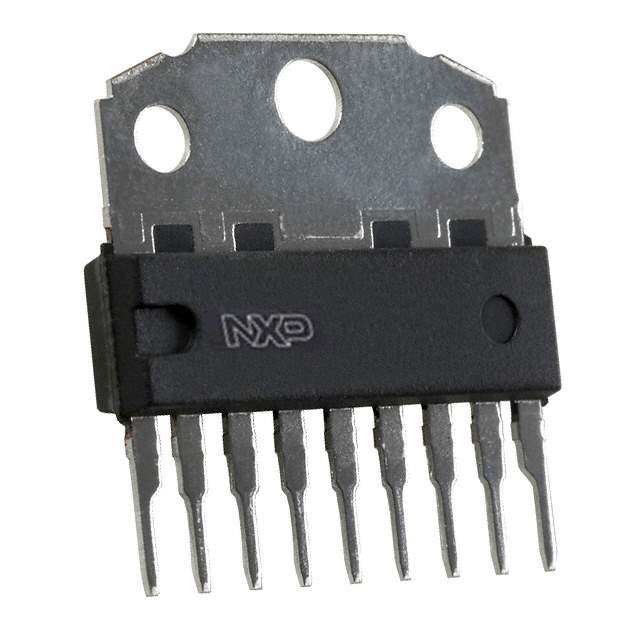

The TDA3653B is a high-performance integrated circuit produced by NXP Semiconductors, designed primarily for use in television vertical deflection systems. This versatile IC offers a comprehensive solution for driving the vertical deflection coil in a CRT (Cathode-Ray Tube) display, ensuring smooth and accurate control over the displayed image's vertical positioning and size.

Key Features

  • Vertical Amplifier: The TDA3653B contains a powerful vertical amplifier capable of driving the deflection coil directly, which simplifies the design of the deflection circuitry.
  • Heat Dissipation: Its advanced design allows for efficient heat dissipation, which is critical for maintaining performance and reliability during prolonged operation.
  • Guard Circuit: The inclusion of a guard circuit provides protection against overvoltage conditions, which can be particularly useful in protecting the rest of the television circuitry from potential damage.
  • Flexible Supply Voltage: It operates over a wide supply voltage range, making it suitable for various television set designs without the need for additional voltage regulation components.
  • East/West Correction: The IC includes East/West correction capability, enabling it to compensate for geometrical distortions in the displayed image, resulting in a more uniform and accurate picture.

Applications

The TDA3653B is designed for use in a broad range of CRT television sets, from small portable models to large home entertainment systems. Its robust design and feature set make it an ideal choice for manufacturers looking to produce high-quality televisions with reliable vertical deflection capabilities.

Conclusion

Overall, the TDA3653B from NXP Semiconductors represents a state-of-the-art solution for vertical deflection in CRT televisions. Its integration of multiple functions into a single IC not only simplifies the design process but also enhances performance and reliability. With its comprehensive set of features and protections, the TDA3653B ensures that television manufacturers can deliver products with superior image quality and longevity.
