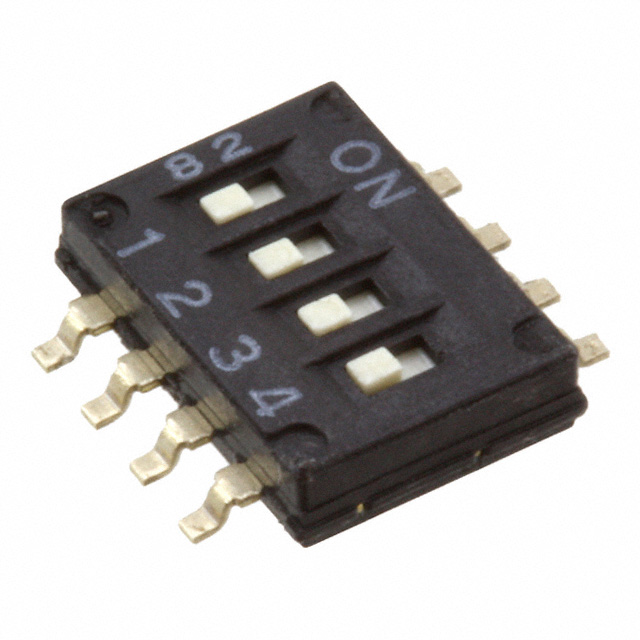

A6H-4102-P Omron
Same model may have multiple batches, images only for reference.

A6H-4102-P

Part No A6H-4102-P
Manufacturer Omron
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V
Datasheet
A6H-4102-P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Omron Electronics Inc-EMC Div
Packaging Reel - TR
Status Active
Circuit SPST
Number of Positions 4
Current Rating 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Height Above Board 0.061" (1.55mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.050" (1.27mm), Half
Washable Yes
Features Tape Seal
Length 0.248" (6.31mm)
Temperature Range - Operating -20°C to 70°C
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Win Source Part Number 076714-A6H-4102-P
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian A6H-4102-P CAD Model

Description

Product Overview

The A6H-4102-P is an essential electronic component intended for robust performance in power management and distribution systems.

Applications

  • Power supply units
  • Renewable energy systems
  • Battery management systems
  • High-efficiency power converters

Features and Benefits

  • High power handling capacity
  • Reliable performance under varying loads
  • Efficient thermal management

Additional details: Known for its reliability, the A6H-4102-P is crafted to support high-power applications, ensuring safety and efficiency even under high load conditions.
