Products specifications

Categories Discrete Semiconductor Products
Manufacturer ON Semiconductor
Packaging Bulk
Status Obsolete
Transistor Type PNP
Current - Collector (Ic) (Maximum) 500mA
Voltage - Collector Emitter Breakdown (Maximum) 25V
Vce Saturation (Maximum) at Ib, Ic 250mV at 5mA, 50mA
Current - Collector Cutoff (Maximum) 100nA (ICBO)
DC Current Gain (hFE) (Minimum) at Ic, Vce 60 at 50mA, 5V
Maximum Power 625mW
Frequency - Transition 100MHz
Temperature Range - Operating -55°C ~ 150°C
Mounting Style Through Hole
Manufacturer Package TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package TO-92-3
Family Part Number 2N3702
Manufacturer Pack Quantity 2,000
MSL Level 1 (Unlimited)
Win Source Part Number 1123757-2N3702
Manufacturer Homepage www.fairchildsemi.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 2N3702 CAD Model

Description

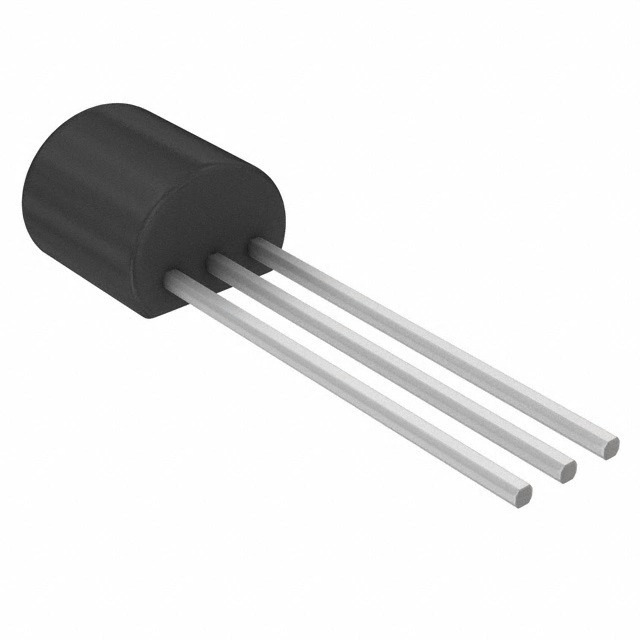

ON Semiconductor 2N3702 PNP Transistor

The 2N3702 is a PNP Bipolar Junction Transistor (BJT) developed by ON Semiconductor, a renowned leader in the semiconductor industry. This versatile transistor is designed for general-purpose amplifier and switching applications, making it a staple component in a wide array of electronic circuits. Its ability to handle moderate power amplification and switching tasks with efficiency and reliability has made it a preferred choice for designers and hobbyists alike.

With a collector-emitter voltage (VCEO) of 25V, the 2N3702 can comfortably operate in most low to medium voltage circuits. The collector current rating of up to 500mA allows it to drive larger loads than many small-signal transistors, which is beneficial for a variety of applications, from driving LEDs to interfacing with other high-power components.

The 2N3702 is housed in a TO-92 package, which is a compact, through-hole design. This package is well-known for its ease of handling and soldering, making it an excellent choice for prototyping and educational purposes. The TO-92 package also provides a good balance between thermal performance and footprint, which is crucial for maintaining the longevity and reliability of the device in operation.

ON Semiconductor has ensured that the 2N3702 meets the highest quality and performance standards. The transistor features a maximum power dissipation of 625mW, allowing it to handle sufficient power levels for a range of applications without the need for additional heat sinking in many cases. It also boasts a transition frequency (fT) of 100MHz, providing ample bandwidth for amplifier applications.

For those looking to incorporate the 2N3702 into their designs, it is important to consult the detailed datasheet provided by ON Semiconductor. The datasheet contains critical information such as absolute maximum ratings, electrical characteristics, thermal properties, and other essential data that will ensure the correct and safe usage of the transistor in various circuits.

In summary, the ON Semiconductor 2N3702 PNP transistor is a reliable and versatile component suitable for a wide range of general-purpose applications. Its robust electrical characteristics and convenient packaging make it a valuable addition to any electronic component inventory.
