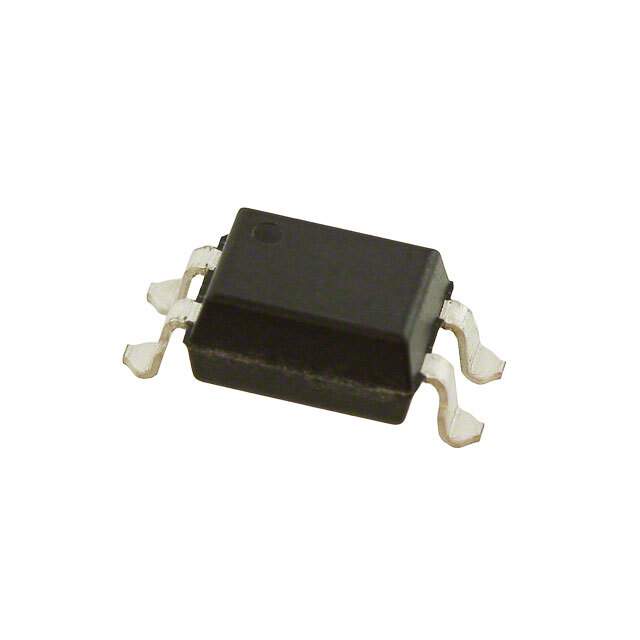

FOD817CS

Part No FOD817CS
Manufacturer ON Semiconductor
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATOR 5KV TRANSISTOR 4SMD / Optoisolator Transistor Output 5000Vrms 1 Channel 4-SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Optoisolators - Transistor, Photovoltaic Output
Mfr onsemi
Package Tube
Number of Channels 1
Voltage - Isolation 5000Vrms
Current Transfer Ratio (Min) 200% @ 5mA
Current Transfer Ratio (Max) 400% @ 5mA
Rise / Fall Time (Typ) 4µs, 3µs
Input Type DC
Output Type Transistor
Voltage - Output (Max) 70V
Current - Output / Channel 50mA
Voltage - Forward (Vf) (Typ) 1.2V
Current - DC Forward (If) (Max) 50 mA
Vce Saturation (Max) 200mV
Temperature Range - Operating -55°C ~ 110°C
Mounting SMD (SMT)
Package / Case 4-SMD, Gull Wing
Supplier Device Package 4-SMD
Base Product Number FOD817
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.8000
Standard Package 100
Win Source Part Number 990845-FOD817CS
Ultra Librarian 3D Model Ultra Librarian FOD817CS CAD Model

Description

The FOD817CS from ON Semiconductor is a high-performance optocoupler designed to provide electrical isolation between its input and output. This component is part of the FOD817 series, which is widely recognized for its reliability and efficacy in a variety of applications, ranging from signal transmission between circuits with different voltage levels to protecting sensitive electronic components from voltage spikes and surges.

Key Features

  • High Isolation Voltage: The FOD817CS offers an isolation voltage of 5000Vrms, ensuring that the input and output are securely separated, thus preventing electrical noise from transferring between circuits.
  • Current Transfer Ratio (CTR): With a CTR range of 50% to 600%, this optocoupler can maintain signal integrity even across varying levels of input current.
  • Wide Operating Temperature: It has an operating temperature range of -55°C to +110°C, making it suitable for harsh environments and ensuring reliable performance under extreme conditions.
  • Lead-Free and RoHS Compliant: The FOD817CS is designed to meet environmental standards, being both lead-free and compliant with the Restriction of Hazardous Substances (RoHS) directive.
  • Compact 4-Pin DIP Package: The device comes in a small 4-pin DIP (Dual In-line Package) configuration that is easy to integrate into various circuit designs.

Applications

The versatility of the FOD817CS allows it to be used in a range of applications including:

  • Microprocessor system interfaces
  • Power supply regulation and monitoring
  • Signal transmission between different voltage circuits
  • DC-DC converter circuits
  • Telecommunication equipment
  • Industrial controls

Technical Specifications

The FOD817CS has a forward current of 60mA and a maximum reverse voltage of 6V. Additionally, the output collector-emitter voltage is 70V, and the collector current is rated at 50mA. These specifications ensure that the device can handle standard signal levels for a wide range of electronic applications.

With its robust design and high-performance capabilities, the ON Semiconductor FOD817CS optocoupler is an excellent choice for designers looking to enhance the safety and efficiency of their electronic systems.
