Products specifications

Categories Isolators
Estimated Pruduction Lead Time 51 Weeks
Features 1.5A Gate Driver Optical Coupling 5000Vrms Channel 6-SOP
Manufacturer ON Semiconductor
Package Tube
Operating Temperature Range -40°C ~ 100°C
Mounting Surface Mount
Package 6-SOIC (0.268", 6.80mm Width)
Case / Package 6-SOP
Family Name FOD831
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.40.8000
Other Part Number FOD8314-ND, FOD8314OS
Quantity per package 2000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 872163-FOD8314
Ultra Librarian 3D Model Ultra Librarian FOD8314 CAD Model

Description

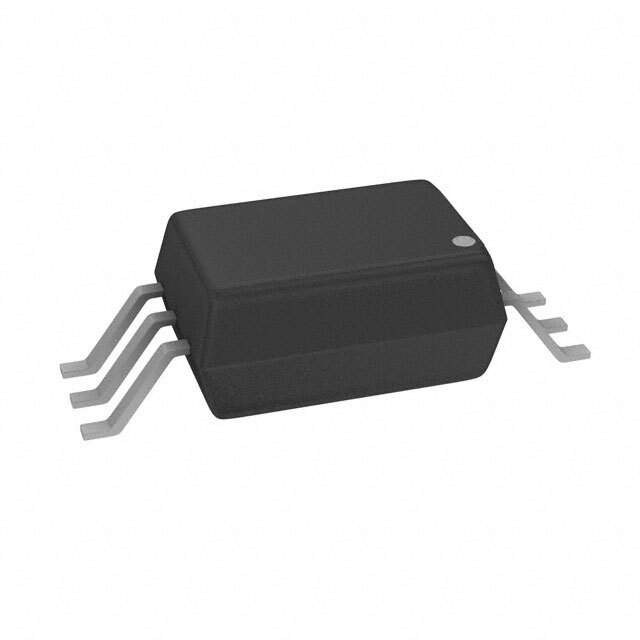

The FOD8314 from ON Semiconductor is a high-performance, IGBT/MOSFET gate drive optocoupler designed to meet the stringent requirements of fast-switching systems. This device is a critical component for ensuring reliable operation and control of power devices in a variety of applications, including motor drives, inverters, and power supply units.

Key Features

  • High-Speed Performance: The FOD8314 is capable of delivering fast switching speeds, which is essential for minimizing transition losses in power devices and improving overall system efficiency.
  • Integrated Active Miller Clamp: An active Miller clamp is provided to prevent spurious gate turn-on, which can occur in high dv/dt environments, thus enhancing the reliability and robustness of the application.
  • High Isolation Voltage: This optocoupler offers an isolation voltage of 5,000Vrms, providing excellent electrical insulation between the input and output, which is critical for safety and noise immunity.
  • Wide Operating Temperature Range: The device is designed to operate over a broad temperature range, from -40°C to +100°C, ensuring consistent performance in diverse operating conditions.
  • UVLO Protection: The Under Voltage Lock-Out (UVLO) feature ensures that the gate driver is only operational when there is sufficient supply voltage, thereby protecting the power device from operating under sub-optimal conditions.

Applications

The FOD8314 is a versatile component that can be used in a wide array of applications. Its robust design makes it suitable for:

  • Industrial Motor Drives
  • Renewable Energy Inverters
  • Uninterruptible Power Supplies (UPS)
  • Automotive Power Modules
  • Switch Mode Power Supplies (SMPS)

Quality and Reliability

ON Semiconductor is known for its commitment to quality, and the FOD8314 is no exception. It is manufactured to the highest standards to ensure reliable operation in the field. The device also complies with regulatory standards, including UL1577 and IEC 60747-5-5, for reinforced insulation. This ensures that the product is not only high-performing but also meets safety and regulatory requirements.

For engineers and designers looking for a reliable gate drive solution that can handle the demands of high-speed switching applications, the FOD8314 from ON Semiconductor is an excellent choice that combines performance, safety, and reliability.
