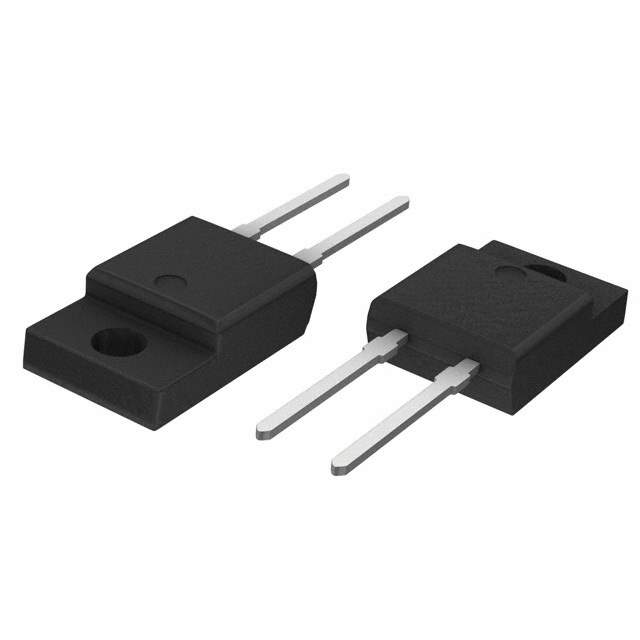

The MURF550PF from ON Semiconductor is a state-of-the-art ultrafast rectifier, designed to deliver high performance in a compact package. It is an ideal choice for applications requiring fast switching, low power loss, and high efficiency. This rectifier is specifically engineered to address the needs of power supply circuits, inverters, converters, freewheeling diodes, and other power switching applications.
Key Features
- Ultrafast Reverse Recovery Time: The MURF550PF boasts an impressive reverse recovery time, which significantly reduces switching losses and enhances the performance of the entire circuit.
- High Voltage Capability: With a reverse voltage of up to 550V, this device can handle high voltage operations, making it suitable for a wide range of power applications.
- Low Forward Voltage Drop: The low forward voltage drop ensures high efficiency, which is critical for reducing thermal and electrical losses in power circuits.
- Robust Design: The rectifier is built with a rugged construction that offers superior reliability and a longer operational lifespan, even under challenging conditions.
- Surface Mount Package: The MURF550PF comes in a surface mount package, which allows for a more compact design and easier integration into various electronic assemblies.
Applications
Due to its high-speed switching capability and efficiency, the MURF550PF is widely used in:
- Switching power supplies
- Power factor correction (PFC) circuits
- AC/DC converters
- High-frequency inverters
- Motor controllers
Technical Specifications
Parameter
Value
Reverse Voltage
550V
Average Rectified Current
5A
Reverse Recovery Time
Typically 35ns
Forward Voltage Drop
Typically 1.7V
Operating Junction Temperature
-55°C to +150°C
The MURF550PF ultrafast rectifier by ON Semiconductor represents a blend of advanced semiconductor technology with robust design, aimed at delivering unmatched performance for high-speed switching applications.
