Products specifications

Category Integrated Circuits (ICs) - Logic - Gates and Inverters - Multi-Function, Configurable
Mfr ON Semiconductor
Package Tube
Product Status Obsolete
Logic Type Configurable Multiple Function
Number of Circuits 2
Number of Inputs 2
Schmitt Trigger Input No
Output Type Differential
Voltage - Supply 2.375V ~ 3.465V
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount

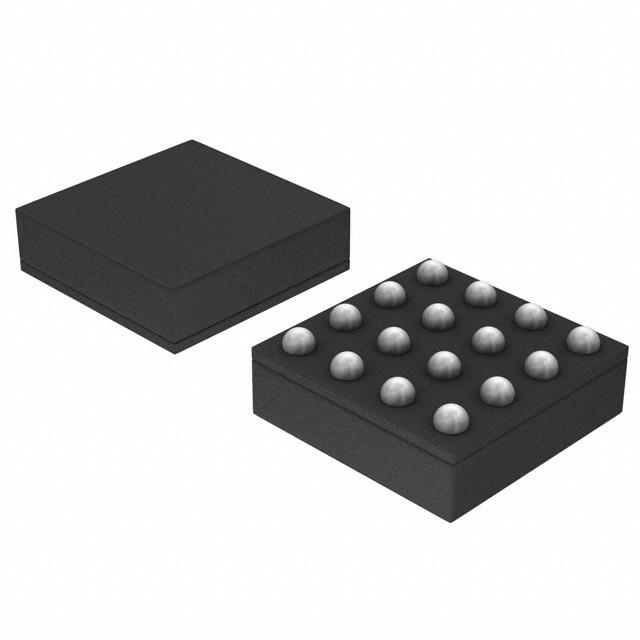

Package / Case 16-LBGA, FCBGA
Supplier Device Package 16-FCBGA (4x4)
Base Product Number NBSG86
Standard Package 100 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A001A11B
HTSUS 8542.39.0001
Win Source Part Number 249857-NBSG86ABA
Ultra Librarian 3D Model Ultra Librarian NBSG86ABA CAD Model

Description

ON Semiconductor NBSG86ABA: High-Performance Differential Signal Receiver/Driver

The ON Semiconductor NBSG86ABA is a leading-edge, high-performance SiGe (Silicon Germanium) differential signal receiver/driver designed for applications requiring ultra-fast signal processing and minimal jitter. This advanced component is part of ON Semiconductor's portfolio of high-speed data communication solutions, offering exceptional performance for a wide range of industrial, networking, and telecommunications applications.

The NBSG86ABA operates over a broad frequency range with a typical data rate of 10 Gbps, making it suitable for high-speed data transfer requirements. It is engineered to accept small differential input signals and amplify them to drive a differential output with enhanced signal integrity. This feature is particularly beneficial in environments with noisy signals or long transmission distances where signal degradation is a concern.

With a differential CML (Current Mode Logic) output structure, the NBSG86ABA provides a balanced output that minimizes electromagnetic interference (EMI), ensuring a clean signal transmission. Its differential inputs incorporate internal 50-ohm termination resistors, which are accessed through the VBB pin. This internal termination simplifies design and reduces external component requirements, leading to a more compact and cost-effective solution.

The device also features a programmable output level that can be adjusted through the VCCO pin, giving designers the flexibility to optimize the performance for specific applications. Additionally, the NBSG86ABA has a selectable input equalization feature that helps to compensate for losses incurred in FR-4 PCB traces, thus preserving signal integrity over extended distances.

For enhanced reliability, the NBSG86ABA is offered in a compact 3x3 mm 16-pin QFN package, which is not only space-saving but also provides excellent thermal performance. It operates over an industrial temperature range of -40°C to +85°C, ensuring stable operation under varying environmental conditions.

Whether it's for high-speed networking equipment, backplane interfaces, or data storage systems, the ON Semiconductor NBSG86ABA stands out as a robust and versatile choice for designers looking to push the limits of speed and performance in their digital communication systems.
