Products specifications

Category Integrated Circuits (ICs) - Interface - I/O Expanders
Mfr onsemi
Series -
Package Tape & Reel
Product Status Active
Number of I/O 8
Interface I²C
Interrupt Output Yes
Features POR
Output Type -
Current - Output Source/Sink -
Clock Frequency 100 kHz
Voltage - Supply 1.65V ~ 5.5V
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Surface Mount

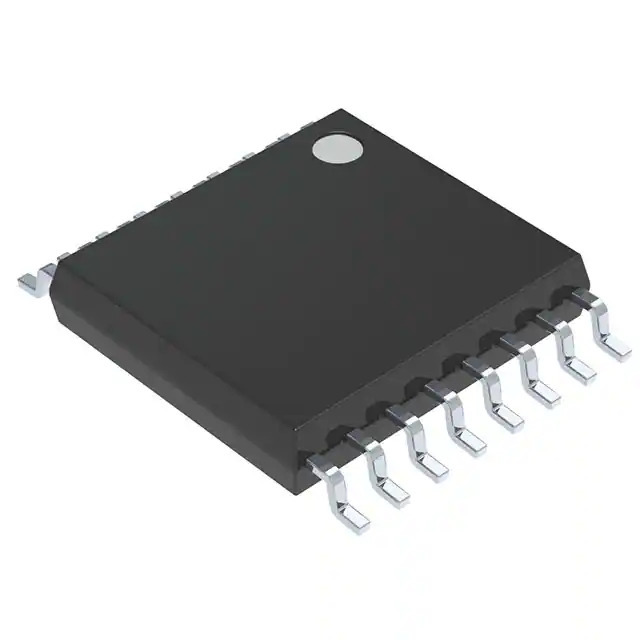

Package / Case 16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package 16-TSSOP
Base Product Number PCA9654
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1370764-PCA9654EDTR2G
Ultra Librarian 3D Model Ultra Librarian PCA9654EDTR2G CAD Model

Description

ON Semiconductor PCA9654EDTR2G Overview

The PCA9654EDTR2G is a robust I/O expander from ON Semiconductor that offers a versatile solution for expanding the I/O capabilities of microcontrollers and microprocessors in a wide range of applications. This component is particularly useful in situations where there are insufficient I/O ports available on the main controller, providing an efficient and cost-effective way to increase the number of I/O lines without the need for a larger microcontroller.

Key Features and Benefits

  • Expansive I/O Interface: The PCA9654EDTR2G is equipped with 8 I/O ports that can be individually configured as inputs or outputs, giving designers the flexibility to adapt to various application requirements.
  • High-Speed I2C Interface: It operates on a fast I2C interface with a transfer rate of up to 400 kHz, enabling quick communication with the main processor.
  • Enhanced Control: Each I/O can be accessed and controlled separately, allowing for precise management of connected peripherals or devices.
  • Low Power Consumption: Designed for power-sensitive applications, this I/O expander features a low standby current, which is ideal for battery-operated devices.
  • Wide Operating Voltage Range: The PCA9654EDTR2G operates over a wide voltage range from 2.3V to 5.5V, making it suitable for various logic levels and ensuring compatibility with multiple host devices.
  • Interrupt Output: An interrupt output is included, which can be configured to alert the host controller when an input state changes, thereby reducing the need for constant polling and saving valuable processor resources.
  • Packaging: The device is available in a compact TSSOP16 package, which is ideal for space-constrained applications.

Applications

The PCA9654EDTR2G is an ideal solution for expanding I/O lines in a multitude of applications, including:

  • Industrial control systems
  • Server motherboards
  • Home automation systems
  • Consumer electronics
  • Portable devices

With its combination of flexibility, performance, and power efficiency, the PCA9654EDTR2G from ON Semiconductor is a go-to choice for designers looking to enhance their system's I/O capabilities without compromising on space or power.
