Products specifications

Category Circuit Protection>TVS - Diodes
Mfr onsemi
Package Tape & Reel (TR)
Product Status Obsolete
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 110V
Voltage - Breakdown (Min) 122V
Voltage - Clamping (Max) @ Ipp 177V
Current - Peak Pulse (10/1000µs) 2.8A
Power - Peak Pulse 500W
Power Line Protection No
Applications General Purpose
Mounting Type Through Hole

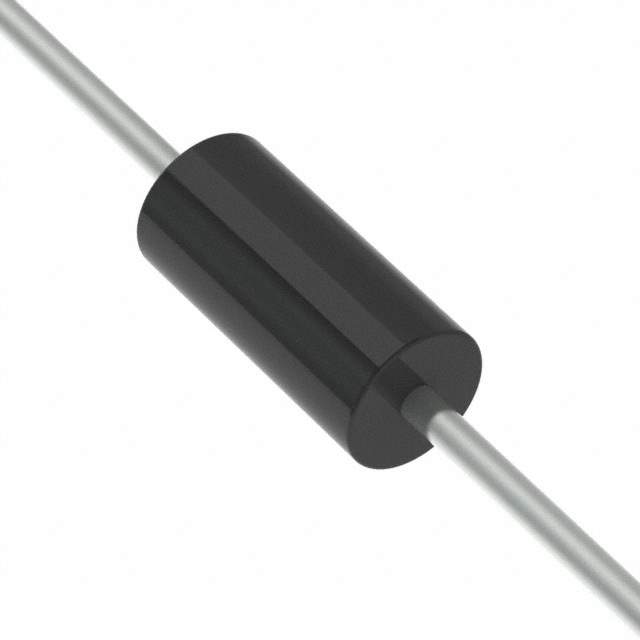

Package / Case DO-204AC, DO-15, Axial
Supplier Device Package DO-15
Base Product Number SA110
Standard Package 4,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1298758-SA110CA
Ultra Librarian 3D Model Ultra Librarian SA110CA CAD Model

Description

The ON Semiconductor SA110CA represents a pinnacle of surge protection technology, designed to shield sensitive electronic equipment from transient overvoltages that can cause irreparable damage. This surge absorber is a critical component for a wide range of applications, including industrial systems, consumer electronics, and communication infrastructure, where reliability and safety are paramount.

With its bidirectional clamping characteristics, the SA110CA is capable of suppressing both positive and negative transients, ensuring comprehensive protection for your circuitry. The device is rated for a standoff voltage of 110 volts, making it suitable for many common electrical systems. When a surge occurs, the SA110CA responds swiftly, clamping the excess voltage and diverting the surge current away from sensitive components, thereby preventing potential damage.

The SA110CA is housed in a compact, robust package that can be easily integrated into a variety of circuit designs. Its low clamping voltage and fast response time are key features that make it an ideal choice for protecting against severe electrical transients. Furthermore, the SA110CA has a high surge capability, which ensures that it can handle large surges without degradation, providing long-term reliability for your products.

ON Semiconductor's commitment to quality is evident in the SA110CA, which is manufactured to stringent standards, ensuring consistent performance and durability. The device also meets relevant industry standards for surge protection devices, providing peace of mind that it will perform as expected in the most demanding situations.

In summary, the SA110CA from ON Semiconductor is a highly effective solution for protecting electronic equipment from voltage transients. Its quick response, high surge capability, and robust design make it an essential component for any application where surge protection is a concern. By incorporating the SA110CA into your design, you can significantly enhance the protection of your electronic systems and extend their operational lifespan.
