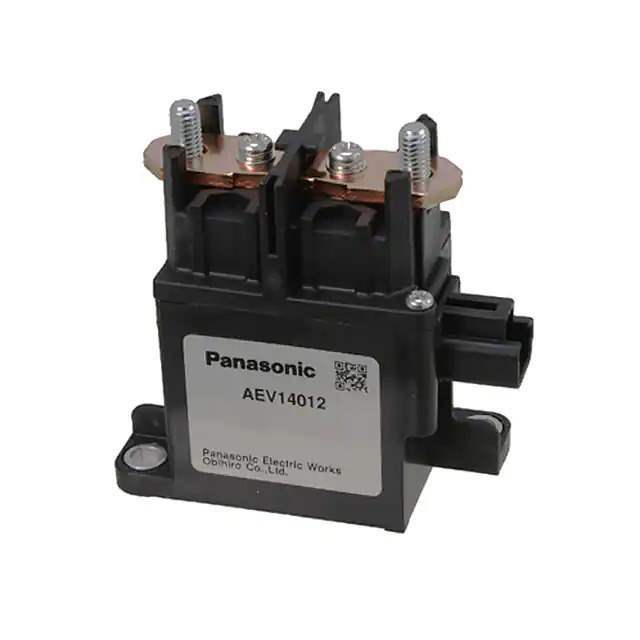

AEV14012 Real Image
Same model may have multiple batches, images only for reference.

AEV14012

Part No AEV14012
Manufacturer Panasonic
Catalog Automotive Relays
Description RELAY AUTOMOTIVE SPST 120A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Automotive Relays
Mfr Panasonic
Series AEV
Package Bulk
Product Status Active
Coil Type Non Latching
Coil Current 353 mA
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 120 A
Switching Voltage 450VDC - Nom
Must Operate Voltage 9 VDC
Must Release Voltage 1 VDC
Operate Time 50 ms
Release Time 30 ms
Mounting Type Chassis Mount
Termination Style Stud
Temperature Range - Operating -40°C ~ 80°C
Coil Power 4.2W
Standard Package 20 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 860671-AEV14012
Ultra Librarian 3D Model Ultra Librarian AEV14012 CAD Model

Description

The AEV14012 is a high-quality automotive relay designed for demanding applications in the automotive industry.

  • Series: AEV series
  • Termination Style: Stud
  • Package: Bulk
  • Contact Form: SPST-NO (1 Form A)
  • Coil Current: 353 mA
  • Operate Time: 50 ms
  • Coil Voltage: 12VDC
  • Contact Rating: 120 A
  • Switching Voltage: 450VDC
  • Mounting: Chassis mountable
  • Temperature Range: -40°C to 80°C
  • Manufacturer: Panasonic
  • Product Status: Active
