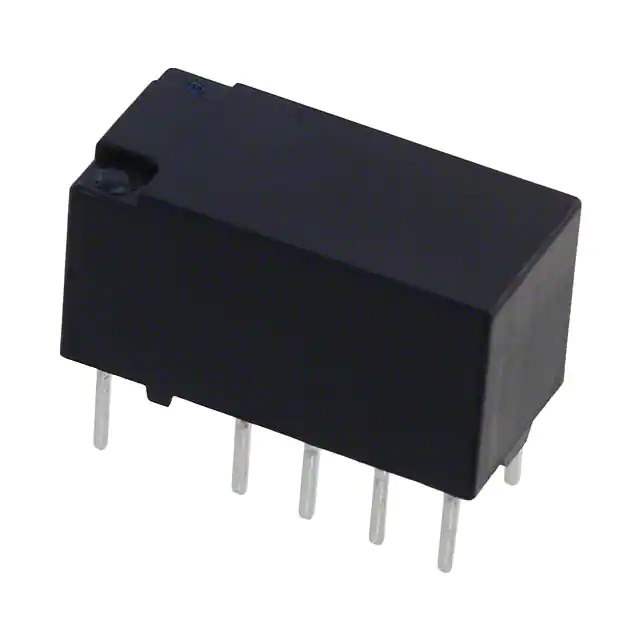

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays - Signal Relays, Up to 2 Amps
Mfr Panasonic
Series TX
Package Tube
Product Status Active
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 2 A
Switching Voltage 220VDC - Max
Coil Current 40 mA
Coil Type Latching, Dual Coil
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 3.75 VDC
Operate Time 4 ms
Release Time 4 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver (Ag), Gold (Au)
Relay Type Telecom
Coil Resistance 125 Ohms
Base Product Number TX2-L
Standard Package 40 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 901584-TX2-L2-5V
Ultra Librarian 3D Model Ultra Librarian TX2-L2-5V CAD Model

Description

The Panasonic TX2-L2-5V is a DPDT (2 Form C) signal relay with a coil voltage of 5VDC and is manufactured by Panasonic.

  • Relay Type: Latching, Dual Coil
  • Application: Telecom
  • Contact Rating: 2A
  • Switching Voltage: 220VDC
  • Coil Resistance: 125 Ohms
  • Coil Current: 40 mA
  • Operate Time: 4 ms
  • Release Time: 4 ms
  • Seal: Sealed
  • Temperature Range: -40°C to 85°C
  • Mounting Style: Through-Hole
  • Termination: PC Pin
  • Package: 40 pcs
  • Product Status: Active
