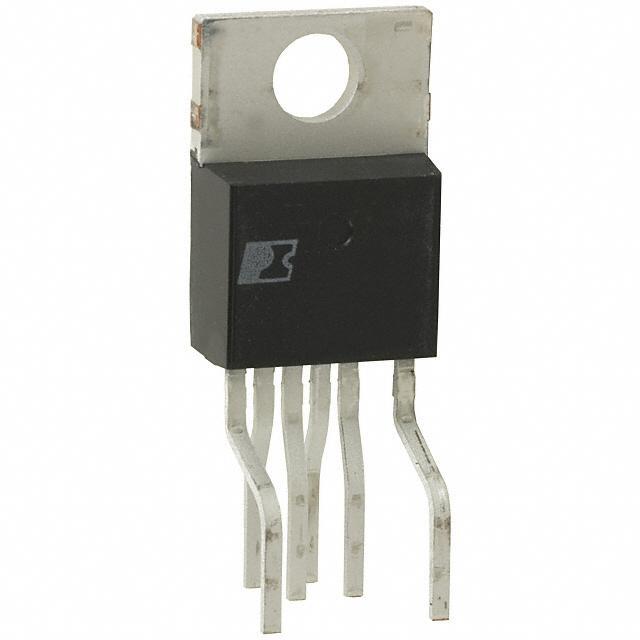

TOP246YN

Name: TOP246YN
Brand: Power Integrations
SKU: 374822
Availability: InStock
Rating: 5 (831 reviews)

Part No	TOP246YN
Manufacturer	Power Integrations
Catalog	PMIC - AC DC Converters, Offline Switchers
Description	IC OFFLINE SWIT UVLO HV TO220 / AC to DC Switching Converter Off-Line Switcher 6-Pin(6+Tab) TO-220C
Datasheet	TOP246YN Datasheet
Sample
ECAD Module

	New List Existing List This product has been added to your List. List Name:

Shipping Information

Shipped from	HK warehouse
Expected Shipping Date	Ship today if order in (HKT)
Supplier Lead-Time	Call for availability
Estimate shipping fee	Enter your destination to get a shipping estimate Estimate Shipping Fee

Pricing & Ordering $1.2954

Quantity

Unit Price

Ext. Price

23+

$2.2610

$52.003

54+

$1.8560

$100.224

84+

$1.7980

$151.032

115+

$1.7400

$200.100

149+

$1.6820

$250.618

199+

$1.5080

$300.092

* The above prices does not include taxes and freight rates, which will be calculated on the order pages.

Availability: 43,315 pieces

MOQ: 23 pcs

Order Increment : 1 pcs

Qty:

*Need More Quantity? *Request a Bulk Quantity Quotation?

Products specifications

Categories	Integrated Circuits
Manufacturer	Power Integrations
Packaging	Tube/Rail
Status	Active
Output Isolation	Isolated
Internal Switch(s)	Yes
Voltage - Breakdown	700V
Topology	Flyback
Duty Cycle	66.5%
Frequency - Switching	66kHz to 132kHz
Power (Watts)	125W
Fault Protection	Current Limiting, Over Temperature, Over Voltage
Control Features	Frequency Control
Temperature Range - Operating	-40°C to 150°C (TJ)
Case / Package	TO-220-7C
Mounting	Through Hole
Win Source Part Number	033377-TOP246YN
Is this a common-used part?	Yes
Popularity	High
Fake Threat In the Open Market	48 pct.
Supply and Demand Status	Balance
Family Name	TOP246
Introduction Date	August 20, 2001
ECCN	EAR99
Halogen Free	Not Compliant
Estimated EOL Date	2022
Alternative Parts (Cross-Reference)	VIPER35HDTR; VIPER06LN; VIPER06LS; VIPER06XSTR;

Description

The TOP246YN is a highly efficient integrated circuit that is designed to provide high performance and reliability in a variety of applications. It is manufactured by Power Integrations and is part of the TOP246 family of integrated circuits. The TOP246YN is a flyback topology circuit that features an output isolation and internal switch(s) for efficient operation. It has a voltage breakdown of 700V and a duty cycle of 66.5%. The frequency of switching ranges from 66kHz to 132kHz. The TOP246YN also features fault protection such as current limiting, over temperature, and over voltage protection. The control features include frequency control. The TOP246YN is packaged in a TO-220-7C case and has a temperature range of -40°C to 150°C (TJ). This integrated circuit is a common-used part and has a high popularity with a low fake threat in the open market. The estimated EOL date for this product is 2022.
