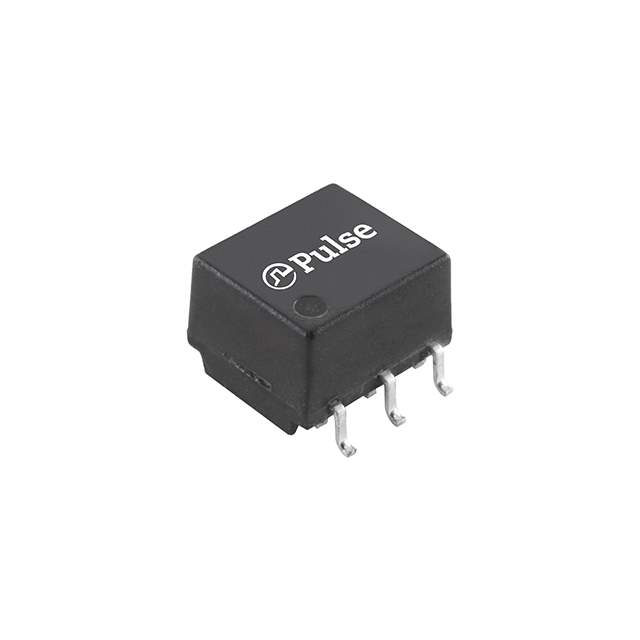

HM2103NL Real Image1 HM2103NL Real Image2
Same model may have multiple batches, images only for reference.
HM2103NL Real Image1 HM2103NL Real Image2
HM2103NL Real Image1 HM2103NL Real Image2
Same model may have multiple batches, images only for reference.

HM2103NL

Part No HM2103NL
Manufacturer Pulse
Catalog Pulse Transformers
Description XFMR CMC MODULE AECQ BATT MNGT / 150µH Pulse Transformer Surface Mount
Datasheet
HM2103NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Pulse
Series -
Package Tube
Transformer Type -
Inductance 150µH
ET (Volt-Time) -
Mounting Type Surface Mount
Size / Dimension 0.300" L x 0.370" W (7.62mm x 9.40mm)
Height - Seated (Max) 0.225" (5.72mm)
Weight -
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Standard Package 65 pcs
Win Source Part Number 1382238-HM2103NL
Ultra Librarian 3D Model Ultra Librarian HM2103NL CAD Model

Description

The 1382238-HM2103NL is a pulse transformer used in various applications.

  • Package: Tube
  • Size: 0.300" L x 0.370" W (7.62mm x 9.40mm)
  • Mounting Type: Surface Mount
  • Inductance: 150μH
  • Seated Height (Max): 0.225" (5.72mm)
  • Standard Package: 65 pcs
  • REACH: Unaffected
  • ECCN: EAR99
  • Manufacturer: Pulse
  • MSL: 1 (Unlimited)
