Products specifications

Category Integrated Circuits (ICs) - Power Management (PMIC) - Motor Drivers, Controllers
Mfr Rohm Semiconductor
Package Tape & Reel
Product Status Not For New Designs
Motor Type - Stepper Multiphase
Motor Type - AC, DC Brushless DC (BLDC)
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (3)
Interface Logic
Technology NMOS
Applications Fan Motor Driver
Current - Output 1.5A
Voltage - Supply 13.5V ~ 400V
Voltage - Load 600V
Temperature Range - Operating 100°C
Mounting Type Surface Mount
Package / Case 54-SOP (0.449", 11.40mm Width), 36 Leads
Supplier Device Package SSOP-A54_36
Base Product Number BM6204
Standard Package 1,000 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1112765-BM6204FS-E2
Ultra Librarian 3D Model Ultra Librarian BM6204FS-E2 CAD Model

Description

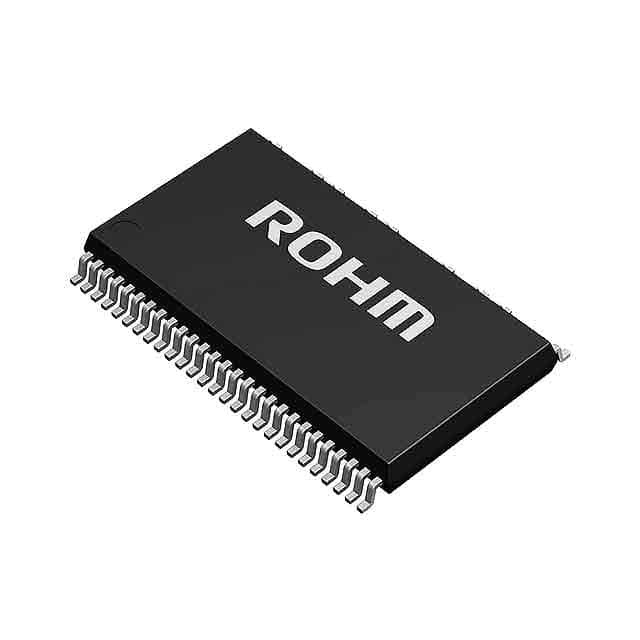

The 1112765-BM6204FS-E2 is an integrated circuit power management motor driver designed for fan motor applications.

  • Application: Fan motor
  • Motor Type: Brushless DC (BLDC) motors
  • Voltage Supply: 13.5V to 400V
  • Manufacturer: Rohm Semiconductor
  • Series: BM6204
  • Package: Tape & Reel
  • Standard Package Size: 1,000 pieces
  • Technology: NMOS
  • Current Output: 1.5A
  • Output Configuration: Half bridge
  • Supported Motor Type: Multiphase
  • Package Type: 54-SOP
  • Leads: 36
  • MSL Level: 3 (168 hours)
  • REACH Status: Unaffected
  • HTSUS Code: 8542.39.0001
  • Recommendation: Not recommended for new designs
