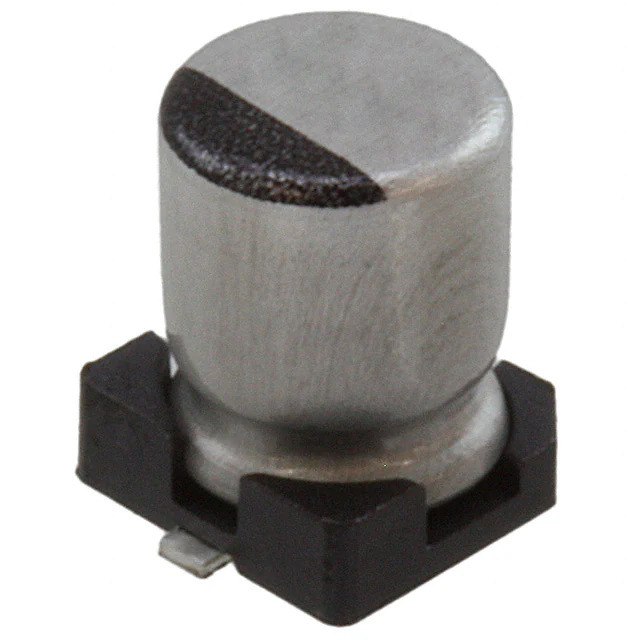

16SEV22M4X5.5 Rubycon
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series SEV
Package Tape & Reel
Product Status Active
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 30 mA @ 120 Hz
Ripple Current @ High Frequency 45 mA @ 10 kHz
Lead Spacing -
Size / Dimension 0.157" Dia (4.00mm)
Height - Seated (Max) 0.217" (5.50mm)
Surface Mount Land Size 0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360348-16SEV22M4X5.5
Ultra Librarian 3D Model Ultra Librarian 16SEV22M4X5.5 CAD Model

Description

The 16SEV22M4X5.5 is an aluminum electrolytic capacitor manufactured by Rubycon.

  • Series: SEV
  • Application: Automotive
  • Package: Radial, Can - SMD
  • Mounting: Surface Mountable
  • Capacitance: 22μF
  • Tolerance: ±20%
  • Voltage Rating: 16V
  • Ripple Current (Low Frequency): 30mA @ 120Hz
  • Ripple Current (High Frequency): 45mA @ 10kHz
  • Lifetime: 2000 hours @ 85°C
  • AEC-Q200: Qualified
  • REACH: Unaffected
  • ECCN: EAR99
  • Polarization: Polarized
  • Size: 0.157" in diameter
  • Height: 0.217"
