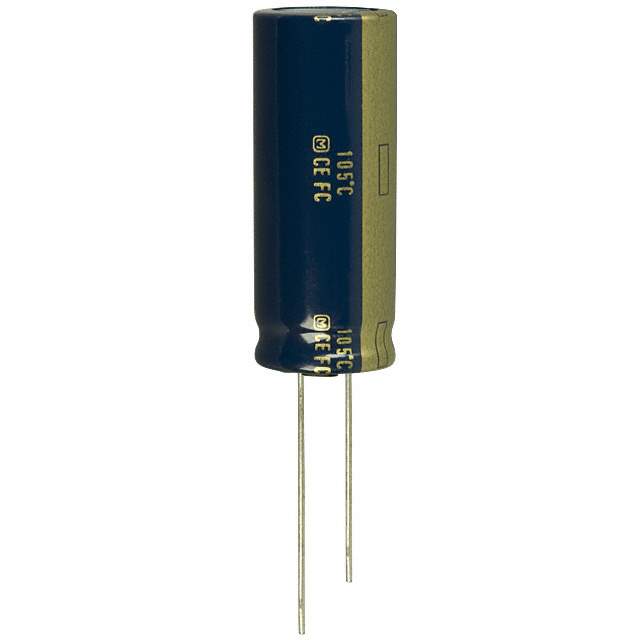

Same model may have multiple batches, images only for reference.

EEU-FC1E562

Name: EEU-FC1E562
Brand: Panasonic
SKU: 1056678
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	EEU-FC1E562
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 5600UF 20% 25V RADIAL / 5600 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Panasonic Electronic Components
Series	FC
Package	Bulk
Capacitance	5600 µF
Tolerance	±20%
Voltage - Rated	25 V
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	3.175 A @ 120 Hz
Ripple Current @ High Frequency	3.735 A @ 100 kHz
Impedance	14 mOhms
Lead Spacing	0.295" (7.50mm)
Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	1.575" (40.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Base Product Number	EEU-FC
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	P11228,EEUFC1E562,P11228-NDR
Standard Package	50
Win Source Part Number	1056678-EEU-FC1E562
Ultra Librarian 3D Model	Ultra Librarian EEU-FC1E562 CAD Model

Alternative Products

Description

The Panasonic Electronic Components 1056678-EEU-FC1E562 is a high-quality aluminum electrolytic capacitor that delivers excellent performance and reliability.

Capacitance: 5600 µF
Voltage Rating: 25 V
Application: Automotive
Polarization: Polarized
Package: Radial can
Height: 1.575" (40.00mm)
Lead Spacing: 0.295" (7.50mm)
Tolerance: ±20%
Impedance: 14 mOhms
Series: EEU-FC
Lifetime: 5000 Hrs @ 105°C
AEC-Q200 Rated: Yes
ESR: -
Mounting: Through-hole
Packaging: Bulk
Standard Package: 50
