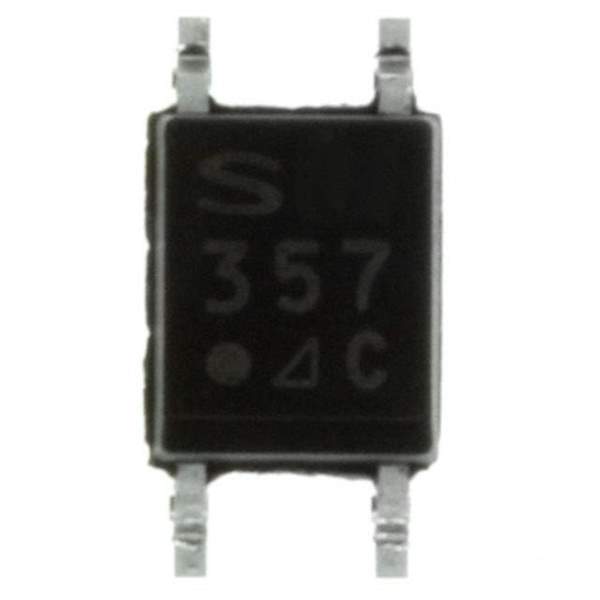

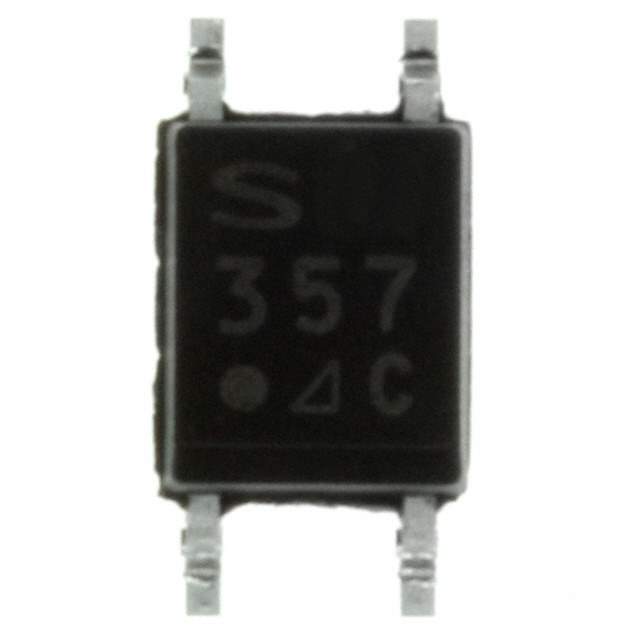

PC357N7J000F Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Number of Channels 1
Isolation Voltage 3750Vrms
Minimum DC Current Transfer Ratio 200% @ 5mA
Maximum DC Current Transfer Ratio 600% @ 5mA
Rise and Fall Time 4μs, 3μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 80V
Channel Output Current 50mA
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Vce Saturation (Max) 200mV
Temperature Range - Operating -30°C to 100°C
Mounting SMD (SMT)
Case / Package 4-SMD
Win Source Part Number 113733-PC357N7J000F
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Computers & Computer Peripherals, Test & Measurement, Signal Processing
Ultra Librarian 3D Model Ultra Librarian PC357N7J000F CAD Model

Description

The PC357N7J000F is a transistor output type optocoupler that is perfect for use in computers & computer peripherals, test & measurement, and signal processing.

  • Forward Voltage: 1.2V
  • Isolation Voltage: 3750Vrms
  • DC Current Transfer Ratio (min): 200% @ 5mA
  • DC Current Transfer Ratio (max): 600% @ 5mA
  • Rise Time: 4μs
  • Fall Time: 3μs
  • Output Voltage (max): 80V
  • Channel Output Current: 50mA
  • Continuous Forward Current: 50mA
  • Manufacturer: Sharp Microelectronics
  • Win Source Part Number: 113733-PC357N7J000F
  • Package: 4-SMD case
