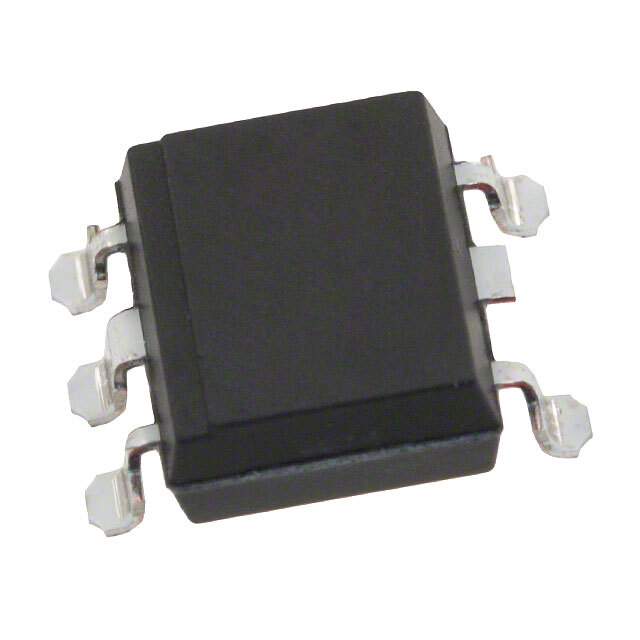

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Output Type Triac
Zero Crossing Circuit Yes
Number of Channels 1
Isolation Voltage 5000Vrms
Voltage - Off State 800V
Static dV/dt (Min) 500V/μs
Current - LED Trigger (Ift) (Max) 5mA
Current - On State (It (RMS)) (Max) 100mA
Current - Hold (Ih) 3.5mA
Turn On Time 50μs (Max)
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Temperature Range - Operating -30°C to 100°C
Mounting SMD (SMT)
Case / Package 6-SMD
Approvals CSA, UR, VDE
Win Source Part Number 1086667-PC4SD21YXPCF
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PC4SD21YXPCF CAD Model

Description

The PC4SD21YXPCF is a triac output type isolator that is designed for a wide range of applications.

  • Approvals: CSA, UR, and VDE
  • Mounting: SMD (SMT)
  • Forward Voltage: 1.2V
  • Off-State Voltage: 800V
  • Isolation Voltage: 5000Vrms
  • Temperature Range: -30°C to 100°C
  • Case/Package: 6-SMD
  • Supply and Demand Status: Limited
