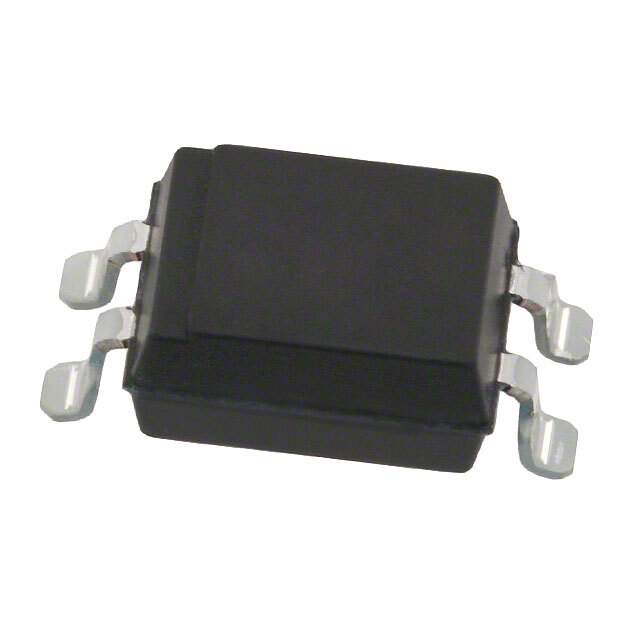

The PC817XI2J00F is a high-isolation voltage, single-channel phototransistor coupler manufactured by Sharp Microelectronics. It's designed to provide electrical isolation between low-voltage control circuits and high-voltage power circuits. This optocoupler consists of an infrared emitting diode (IRED) and a phototransistor, allowing for signal transfer without a direct electrical connection.

Applications:

• Power Supplies: Used for feedback control and isolation in switched-mode power supplies (SMPS).
• Industrial Control Systems: Provides isolation between control logic and motor drives or other high-voltage equipment.
• Medical Equipment: Ensures patient safety by isolating sensitive electronics from potentially hazardous voltages.
• Instrumentation: Isolates measurement circuits from noisy or high-voltage environments.
• Telecommunications: Provides isolation in telephone line interfaces and other communication equipment.

Features:

• High Isolation Voltage: Offers high voltage isolation (typically 5000Vrms) between input and output.
• Current Transfer Ratio (CTR): Specifies the ratio of output current to input current (check datasheet for specific CTR range).
• Low Saturation Voltage: Minimizes voltage drop across the output transistor.
• Fast Switching Speed: Enables rapid signal transfer.
• Compact Package: Available in a small outline package (SOP) for space-saving designs.
• Operating Temperature Range: Suitable for operation in a wide temperature range.
• RoHS Compliant: Meets environmental standards for lead-free manufacturing.

Benefits:

• Electrical Isolation: Protects sensitive circuits from high voltages and transients.
• Noise Immunity: Prevents ground loops and reduces noise interference.
• Signal Amplification: Provides current gain for driving higher-current loads.
• Simple Interface: Requires minimal external components for operation.
• Reliable Performance: Offers stable and consistent performance over a wide range of operating conditions.

Additional Details:

The PC817XI2J00F typically requires a current-limiting resistor in series with the input LED to prevent damage. The output transistor can be connected in either a common-emitter or common-collector configuration, depending on the application requirements. Consult the Sharp Microelectronics datasheet for detailed electrical characteristics, timing diagrams, and application notes. The Current Transfer Ratio (CTR) is a crucial parameter for designing the input and output circuitry to achieve the desired signal transfer characteristics. Ensure the selected optocoupler meets the required isolation voltage for the specific application safety standards.
