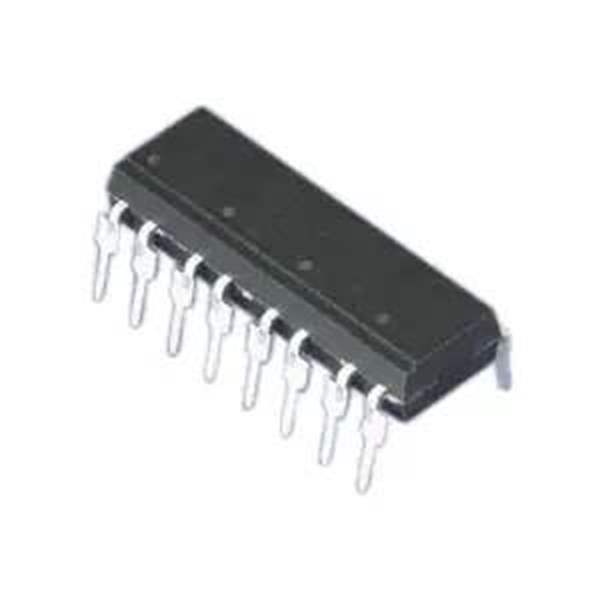

PC844X Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Isolators - Optoisolators - Transistor, Photovoltaic Output Optoisolators
Mfr Sharp Microelectronics
Package Tube
Product Status Obsolete
Number of Channels 4
Voltage - Isolation 5000Vrms
Current Transfer Ratio (Min) 20% @ 1mA
Current Transfer Ratio (Max) 300% @ 1mA
Rise / Fall Time (Typ) 4µs, 3µs
Input Type AC, DC
Output Type Transistor
Voltage - Output (Max) 80V
Current - Output / Channel 50mA
Voltage - Forward (Vf) (Typ) 1.2V
Current - DC Forward (If) (Max) 50 mA
Vce Saturation (Max) 200mV
Temperature Range - Operating -30°C ~ 100°C
Mounting Type Through Hole
Package / Case 16-DIP (0.300", 7.62mm)
Supplier Device Package 16-DIP
Standard Package 25 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 888673-PC844X
Ultra Librarian 3D Model Ultra Librarian PC844X CAD Model

Description

The PC844X Optoisolator is a transistor-based optoisolator designed for electrical isolation in various applications.

  • Manufacturer: Sharp Microelectronics
  • Packaging: Tube
  • Package Quantity: 25 pieces
  • Voltage Isolation: 5000Vrms
  • Mounting: Through-Hole
  • Win Source Part Number: 888673-PC844X
  • Category: Isolators - Optoisolators - Transistor, Photovoltaic Output Optoisolators
