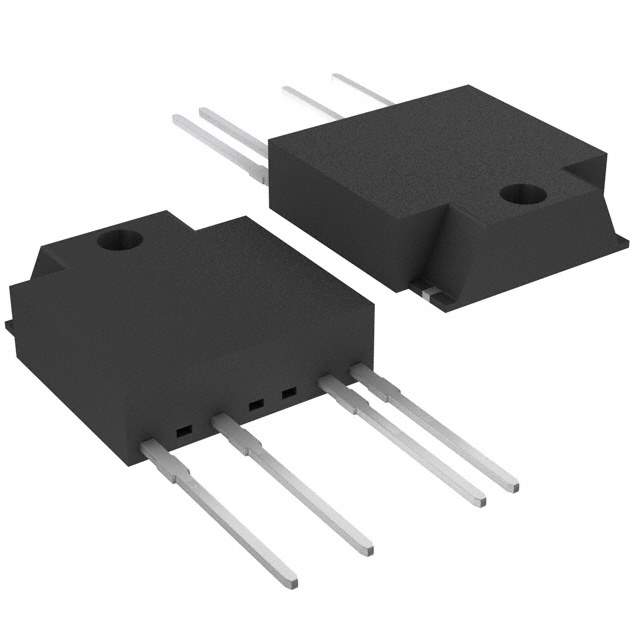

S101N12 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays>Solid State Relays
Mfr Sharp Microelectronics
Series S101
Package Tube
Product Status Obsolete
Mounting Type Through Hole
Circuit SPST-NO (1 Form A)
Output Type AC, Zero Cross
Voltage - Input 1.2VDC
Voltage - Load 80 V ~ 120 V
Load Current 1.6 A
Termination Style PC Pin
Package / Case 4-SIP
Supplier Device Package 4-SIP
Other Names 425-1209-5
Standard Package 25
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 1237265-S101N12
Ultra Librarian 3D Model Ultra Librarian S101N12 CAD Model

Description

The S101N12 is a solid state relay from Sharp Microelectronics.

  • Termination Style: PC Pin
  • Package: Tube
  • Standard Package: 25
  • Voltage Input: 1.2VDC
  • Output Type: AC, zero cross
  • Circuit: SPST-NO (1 Form A)
  • Load Current: 1.6 A
  • Voltage Load: 80 V ~ 120 V
  • Mounting Type: Through hole
  • Package/Case: 4-SIP
  • Supplier Device Package: 4-SIP
  • MSL Level: 1 (unlimited)
  • HTSUS: 8536.41.0030
  • Product Status: Obsolete
  • RoHS: Non-compliant
