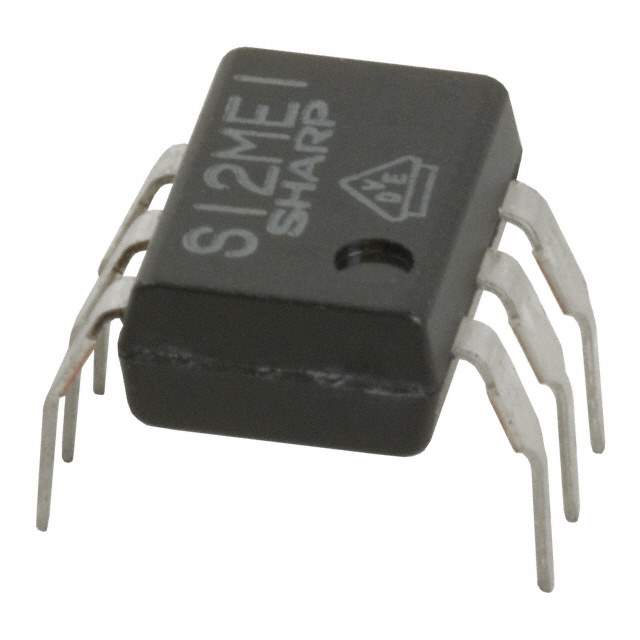

S12ME1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Tube/Rail
Status Obsolete(EOL)
Output Type SCR
Zero Crossing Circuit No
Number of Channels 1
Isolation Voltage 4000Vrms
Voltage - Off State 400V
Static dV/dt (Min) 3V/μs
Current - LED Trigger (Ift) (Max) 10mA
Current - On State (It (RMS)) (Max) 200mA
Current - Hold (Ih) 1mA
Turn On Time 50μs (Max)
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Temperature Range - Operating -30°C to 100°C
Mounting Through Hole
Case / Package 6-DIP
Approvals BSI, UR, VDE
Win Source Part Number 046534-S12ME1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian S12ME1 CAD Model

Description

The Sharp Microelectronics 046534-S12ME1 is a through-hole SCR in a 6-DIP package.

  • Mounting: Through-Hole
  • Package: 6-DIP
  • Forward Voltage: 1.2V
  • Off-State Voltage: 400V
  • Current On State: 200mA
  • Isolation Voltage: 4000Vrms
  • Category: Isolators
  • Status: Discontinued
