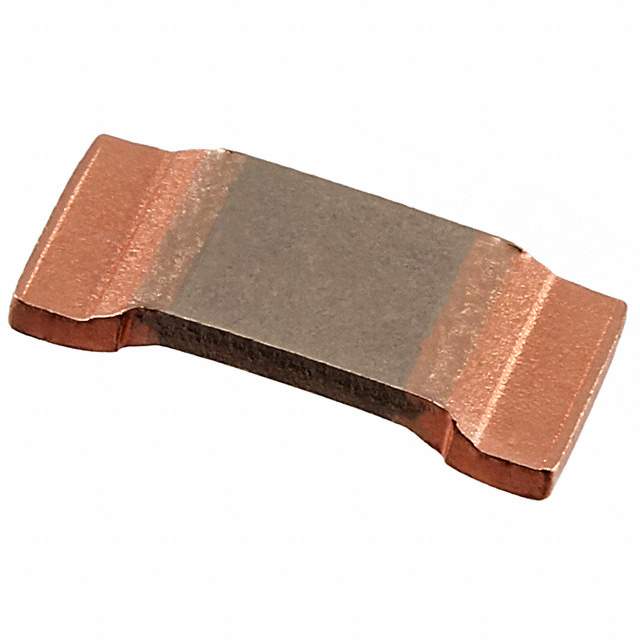

HCS3920FTL300 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Stackpole Electronics Inc
Series HCS
Package Tape & Reel
Resistance 300 µOhms
Tolerance ±1%
Power (Watts) 5W
Composition Metal Element
Features Automotive AEC-Q200, Current Sense, Moisture Resistant
Temperature Coefficient ±150ppm/°C
Temperature Range - Operating -55°C ~ 170°C
Package / Case Nonstandard
Supplier Device Package 3920
Ratings AEC-Q200
Dimension 0.402" L x 0.205" W (10.20mm x 5.20mm)
Height - Seated (Max) 0.062" (1.57mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names HCS3920FTL300DKR,HCS3920FTL300TR,HCS3920FTL300CT
Standard Package 3,000
Win Source Part Number 969913-HCS3920FTL300
Ultra Librarian 3D Model Ultra Librarian HCS3920FTL300 CAD Model

Description

The HCS3920FTL300 is a chip resistor designed for surface mount applications.

  • Resistor Type: Metal Element
  • Resistance: 300 μOhms
  • Power Rating: 5W
  • Tolerance: ±1%
  • Temperature Coefficient: ±150ppm/°C
  • Features: Automotive AEC-Q200, Current Sense, Moisture Resistant
  • Package: Tape and Reel
  • Standard Package Quantity: 3,000
  • Failure Rate: -
  • Supplier Device Package: 3920
  • Operating Temperature Range: -55°C to 170°C
  • Dimensions: 0.402" L x 0.205" W (10.20mm x 5.20mm)
  • Manufacturer: Stackpole Electronics Inc.
