Products specifications

Category Resistors>Chip Resistor - Surface Mount
Mfr Stackpole Electronics Inc
Series RNCF
Package Tape & Reel (TR)
Resistance 102 Ohms
Tolerance ±0.5%
Power (Watts) 0.03W, 1/32W
Composition Thin Film
Features Automotive AEC-Q200
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0201 (0603 Metric)
Supplier Device Package 0201
Ratings AEC-Q200
Dimension 0.023" L x 0.011" W (0.58mm x 0.29mm)
Height - Seated (Max) 0.011" (0.28mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Standard Package 10,000
Win Source Part Number 985831-RNCF0201DTC102R
Ultra Librarian 3D Model Ultra Librarian RNCF0201DTC102R CAD Model

Description

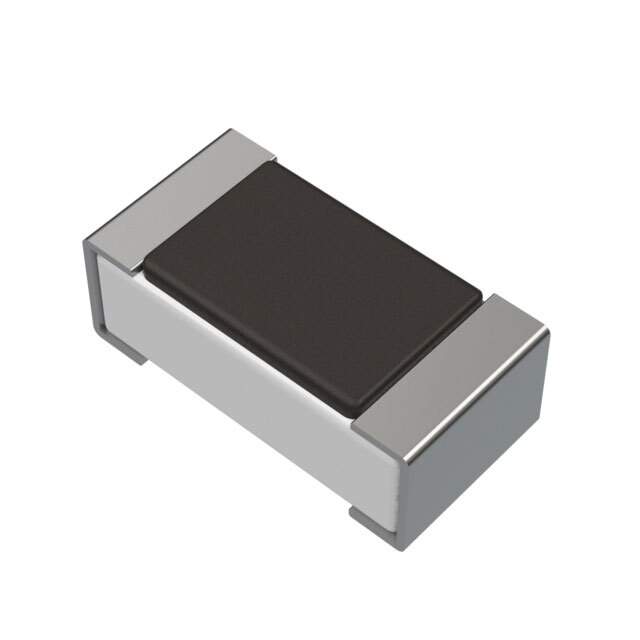

The RNCF0201DTC102R is a chip resistor that is designed to provide reliable performance in electronic systems. This component is manufactured by Stackpole Electronics Inc, a trusted brand in the electronics industry.

  • Category: Resistor - Chip Resistor - Surface Mount
  • Win Source Part Number: 985831-RNCF0201DTC102R
  • Resistance: 102 Ohms
  • Power: 0.03W, 1/32W
  • Tolerance: ±0.5%
  • Temperature Coefficient: ±50ppm/°C
  • RoHS Compliant: Yes
  • Temperature Range: -55°C to 155°C
