Products specifications

Category Integrated Circuits (ICs)>Embedded - Microprocessors
Mfr STMicroelectronics
Series STM32MP1
Package Tray
Core Processor ARM® Cortex®-A7
Number of Cores/Bus Width 2 Core, 32-Bit
Speed 209MHz, 800MHz
Co-Processors/DSP ARM® Cortex®-M4
RAM Controllers DDR3, DDR3L, LPDDR2, LPDDR3
Graphics Acceleration Yes
Display & Interface Controllers HDMI-CEC, LCD
Ethernet 10/100Mbps (1)
USB USB 2.0 (2), USB 2.0 OTG+ PHY (3)
Voltage - I/O 2.5V, 3.3V
Temperature Range - Operating -20°C ~ 105°C (TJ)
Security Features ARM TZ

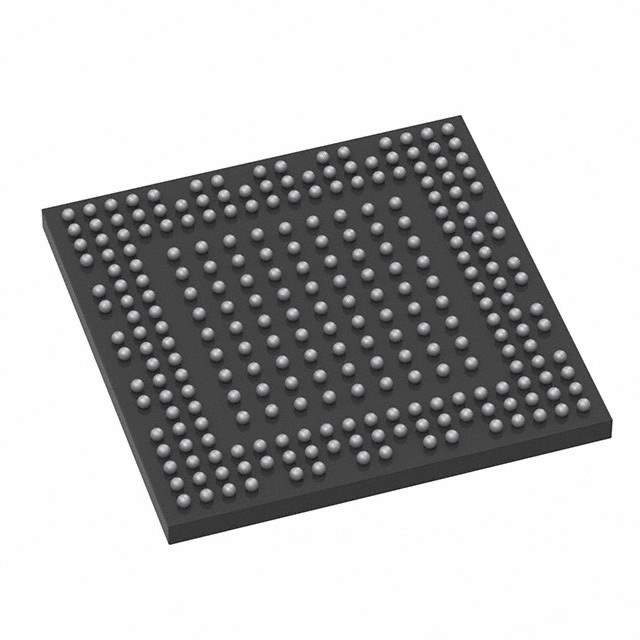

Package / Case 257-TFBGA
Supplier Device Package 257-TFBGA (10x10)
Additional Interfaces CAN, Ethernet, I²C, MMC/SD/SDIO, SPDIF, SPI, UART, USB
Base Product Number STM32
Other Names 497-STM32MP153DAD1
Standard Package 184
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Win Source Part Number 1261828-STM32MP153DAD1
Ultra Librarian 3D Model Ultra Librarian STM32MP153DAD1 CAD Model

Description

STM32MP153DAD1 - A High-Performance Microprocessor from STMicroelectronics

The STM32MP153DAD1 is a cutting-edge microprocessor that belongs to the STM32 family, designed and manufactured by STMicroelectronics. This device is tailored for sophisticated applications that require a rich set of peripherals, high-performance computation, and low-power operation. It is an ideal choice for industrial, consumer, medical, and smart home applications.

At the heart of the STM32MP153DAD1 is a dual-core configuration that includes an Arm® Cortex®-A7 core operating at up to 800 MHz and a Cortex®-M4 core running at up to 209 MHz. This combination allows for a high degree of flexibility, enabling real-time tasks to be managed separately from the main application processor, thereby enhancing system efficiency and reliability.

The microprocessor features a rich set of peripherals that include multiple connectivity options such as Ethernet, USB OTG, and multiple serial interfaces. It also boasts an advanced graphical support system with an LCD-TFT controller, making it suitable for applications that require a user interface with graphics and touch control.

With its 3D GPU, the STM32MP153DAD1 is capable of delivering impressive graphics performance, which is essential for applications with graphical user interfaces. The inclusion of a secure boot and cryptographic accelerators ensures that applications built on this platform can maintain data security and integrity.

The STM32MP153DAD1 also supports a wide range of external memory interfaces, including SDRAM, SRAM, and flash memory, which provides designers with the flexibility to choose the best memory solution for their application. Additionally, its power management capabilities allow for optimized power usage, which is critical for portable and power-sensitive devices.

Overall, the STM32MP153DAD1 from STMicroelectronics is a versatile and powerful microprocessor that offers a perfect blend of performance, power efficiency, and rich feature set, making it an ideal choice for a wide array of sophisticated applications.
