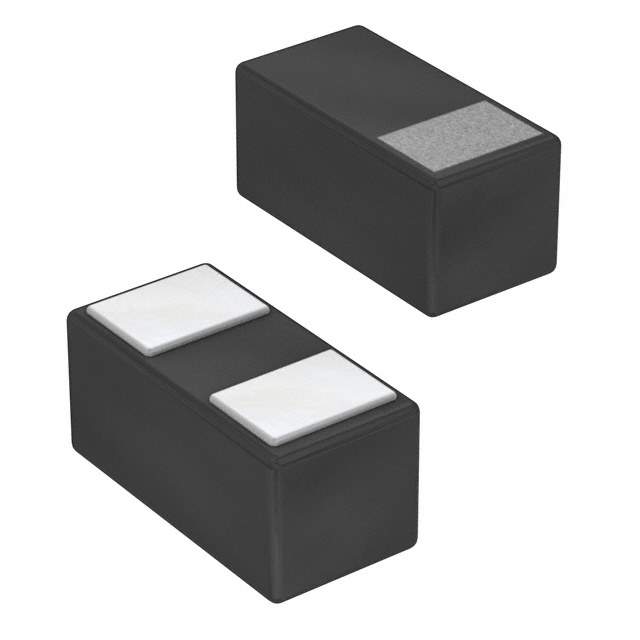

The BAT30F4 is a high-performance Schottky diode designed and manufactured by STMicroelectronics, a global semiconductor leader. This diode is engineered to provide efficient and fast switching with low forward voltage drop. It is often used in applications such as power management, voltage clamping, and protection circuits across a wide range of electronic devices.
Key Features
- Low Forward Voltage Drop: The BAT30F4 offers a very low forward voltage drop, which results in reduced power loss and higher efficiency in applications where it is used.
- Fast Switching Capability: Its fast switching speed makes it suitable for high-frequency operations, ensuring that the diode can handle quick transitions without performance degradation.
- Small Package Size: Housed in a small SOT-23 package, the BAT30F4 is ideal for space-constrained applications, offering high performance in a compact footprint.
- High Reliability: STMicroelectronics is known for its commitment to quality, and the BAT30F4 is no exception. It is designed to meet stringent reliability standards, ensuring stable operation over its lifespan.
- Low Leakage Current: The diode features a low leakage current, which is crucial for maintaining energy efficiency, particularly in battery-powered devices.
Applications
The BAT30F4 is versatile and can be used in a variety of applications, including:
- Switch-mode power supplies (SMPS)
- DC-DC converters
- Reverse polarity protection
- Load switch or battery charging circuits
- Automotive and portable devices
Technical Specifications
Parameter
Value
Repetitive Peak Reverse Voltage (V<sub>RRM)
40V
Average Forward Current (I<sub>F(AV))
200mA
Forward Voltage Drop (V<sub>F) @ I<sub>F
0.385V @ 100mA
Operating Junction Temperature (T<sub>j)
-40°C to 125°C
Overall, the BAT30F4 from STMicroelectronics is a robust and reliable choice for designers looking to incorporate a high-quality Schottky diode into their electronic designs. Its combination of low forward voltage drop, fast switching, and compact size make it an excellent choice for a wide range of applications.
