The BTA40-800B is a high-performance triac manufactured by STMicroelectronics, designed to manage AC loads in a wide array of applications. This triac is specifically engineered to provide outstanding performance in situations requiring high bidirectional transient and blocking voltage capability and high thermal cycling performance.

Key Features

• High Current Rating: The BTA40-800B can handle currents up to 40A, making it suitable for handling heavy loads.
• High Blocking Voltage: With an 800V peak repetitive off-state voltage capability, this triac is ideal for applications that require high-voltage operation.
• Gate Trigger Voltage: A low gate trigger voltage ensures that the triac can be easily driven by microcontrollers and other low-power gate trigger circuits.
• Snubberless Technology: This feature allows the triac to be used in applications without additional snubber circuits, simplifying design and reducing component count.
• High Commutation Capability: The BTA40-800B is capable of handling high commutation rates, which is essential for applications with frequent switching.

Applications

The BTA40-800B is versatile and can be used in a variety of applications, including:

• Motor control circuits
• Lighting control systems
• Heating and temperature control modules
• AC power switching
• Static relays
• Industrial and home appliances

Reliability and Safety

STMicroelectronics ensures that the BTA40-800B meets stringent quality and reliability standards. It is RoHS compliant and suitable for lead-free soldering, adhering to environmental regulations. Its robust package is designed to withstand high temperature and high current environments, ensuring a long operational life and consistent performance.

Package and Mounting

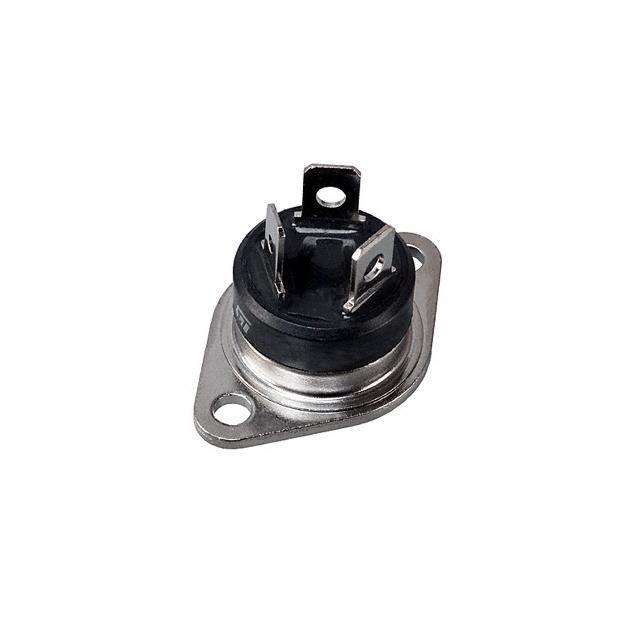

The BTA40-800B comes in a standard RD91 package, which is designed for through-hole mounting. This package facilitates heat dissipation and allows for easy integration into a wide range of electronic circuits.

With its combination of high power handling, reliability, and ease of use, the BTA40-800B from STMicroelectronics is an excellent choice for designers looking to control high-power AC loads efficiently and effectively.
