Products specifications

Categories Filters
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Active
Filter Type Signal Line
Number of Lines 2
Current Rating (Max) 200mA
DC Resistance (DCR) (Max) 2.5 Ohm
Temperature Range - Operating -40°C to 85°C
Features ESD
Mounting SMD (SMT)
Height (Max) 0.022" (0.55mm)
Dimension 6-UFQFN
Win Source Part Number 013205-ECMF02-2AMX6
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ECMF02-2AMX6 CAD Model

Description

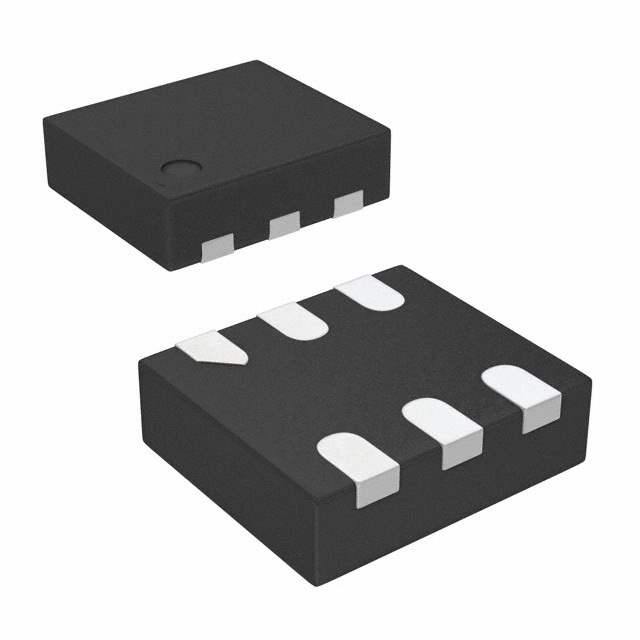

ECMF02-2AMX6: EMI Filtering and Signal Conditioning Component by STMicroelectronics

The ECMF02-2AMX6 is a highly integrated solution designed by STMicroelectronics for EMI filtering and signal conditioning. This compact component is engineered to provide exceptional protection for high-speed data lines against ElectroMagnetic Interference (EMI), enhancing the performance and reliability of electronic systems.

Key Features

  • Integrated ESD Protection: With built-in ElectroStatic Discharge (ESD) protection, the ECMF02-2AMX6 safeguards sensitive circuitry against sudden and extreme voltage spikes, meeting the IEC 61000-4-2 standard.
  • High-Speed Data Line Compatibility: This device is optimized for differential lines such as USB 2.0, HDMI, MIPI, and LVDS, ensuring signal integrity for high-speed data communication.
  • Low Capacitance: Its low line capacitance minimizes signal attenuation, allowing for the preservation of signal bandwidth and ensuring high-quality data transmission.
  • Compact Design: Housed in a micro-QFN package, the ECMF02-2AMX6 occupies minimal board space, making it an ideal choice for space-constrained applications.

Applications

The ECMF02-2AMX6 is versatile and can be used across a wide range of applications. It is particularly well-suited for:

  • Smartphones and tablets
  • Portable electronics
  • High-speed data interfaces in computing and consumer applications
  • USB 2.0 and HDMI ports in multimedia devices

Performance and Quality

STMicroelectronics is known for its commitment to quality and performance, and the ECMF02-2AMX6 is no exception. It delivers robust protection and signal conditioning without compromising on performance, making it an essential component for designers looking to enhance the resilience and functionality of their high-speed data interfaces.

By incorporating the ECMF02-2AMX6 into your design, you can ensure your products meet the highest standards for EMI resistance and signal quality, maintaining the integrity and speed of digital communications even in the most demanding environments.

For detailed specifications and application notes, designers and engineers are encouraged to consult the comprehensive datasheets and technical documentation available on the STMicroelectronics website.
